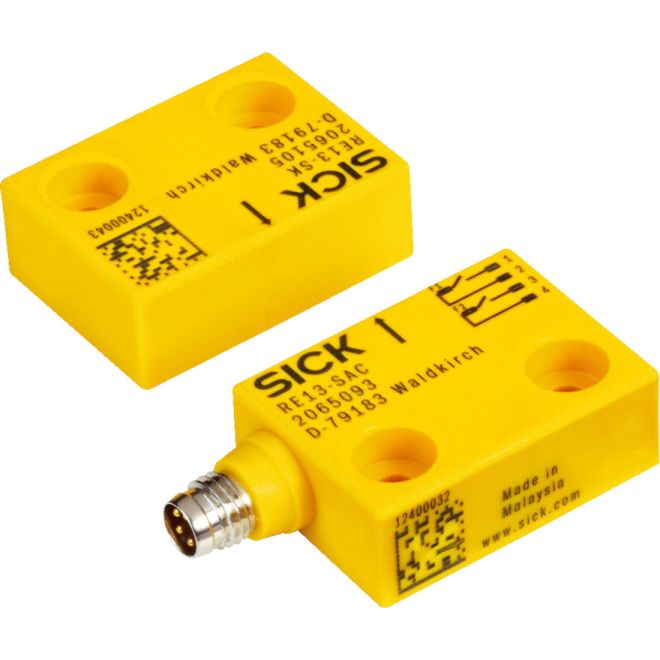

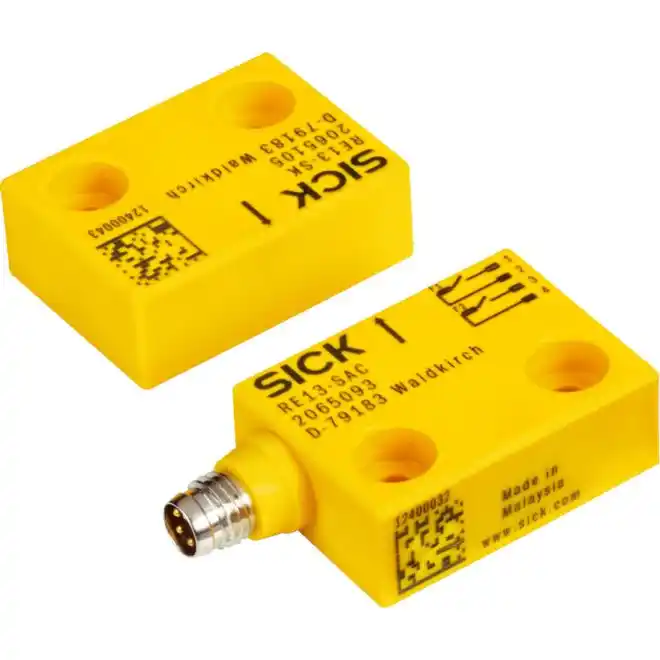

SICK RE13-SAC 1059503 Type 4 Sensor & Actuator
SKU#:
429445
RE1 magnetic safety switches are equipped with either complementary NC/NO contacts or equivalent N/O contacts which are addressed directly with coded magnetic actuators. Magnetic safety switches are used in areas where a high level of contamination occurs. SICK RE13-SAC 1059503 is simple to clean, thereby enabling high standards of hygiene. Their principle of operation enables greater tolerances,making them ideal for applications where precise guidance of the protective device is difficult.
| Brand | SICK |
|---|---|
| Manufacturer Part Number | 1059503 |
| Manufacturer Alternate Number | RE13-SAC |
| Terminal Type | M8 4-Pin Plug Connector |
| Rated Current | 100mA |
| Actuator Type | Magnetic |
| Mounting Type | Flange |
| IP Rating | IP67 |
| Type | Safety |
| Height (mm) | 36mm (1.42") |
| Width (mm) | 13mm |
| Depth (Length) (mm) | 26.2mm |
| Weight (lbs) | 0.13 |
| UOM | ea |
