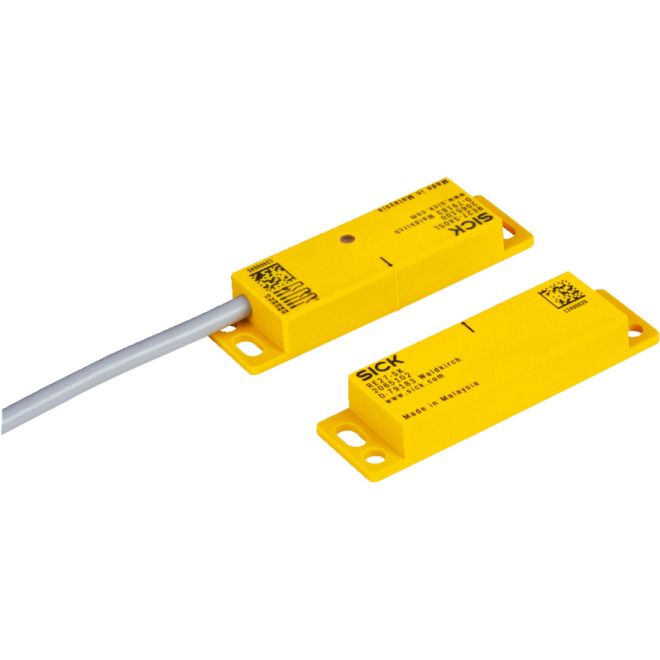

SICK RE27-SA05L 1059510 Non-Contact Safety Switch
SKU#:
432028
SICK RE2 magnetic safety switch is used to monitor doors and flaps up to IP67. It impresses with its long service life, a low-wear and -maintenance design and space-saving mounting. At the same time, the RE27-SA05L 1059510 also offers reliable functionality even under unfavorable ambient conditions, such as heavy contamination. Thanks to the high tolerance to door offset, the RE2 can be used for all sliding and swinging doors and enables the highest level of machine availability. Using special function blocks in the safety controller, the RE2 can achieve performance level e in accordance with EN ISO 13849 and also offers high manipulation protection.
| Brand | SICK |
|---|---|
| Manufacturer Part Number | 1059510 |
| Manufacturer Alternate Number | RE27-SA05L |
| Terminal Type | 5m PVC Cable |
| Rated Current | 100mA |
| Actuator Type | Magnetic |
| Switch Type | 2 N/O |
| Mounting Type | Flange |
| IP Rating | IP67 |
| Type | Safety |
| Height (mm) | 88mm (3.46") |
| Width (mm) | 25mm |
| Depth (Length) (mm) | 13mm |
| Weight (lbs) | 0.69 |
| UOM | ea |
