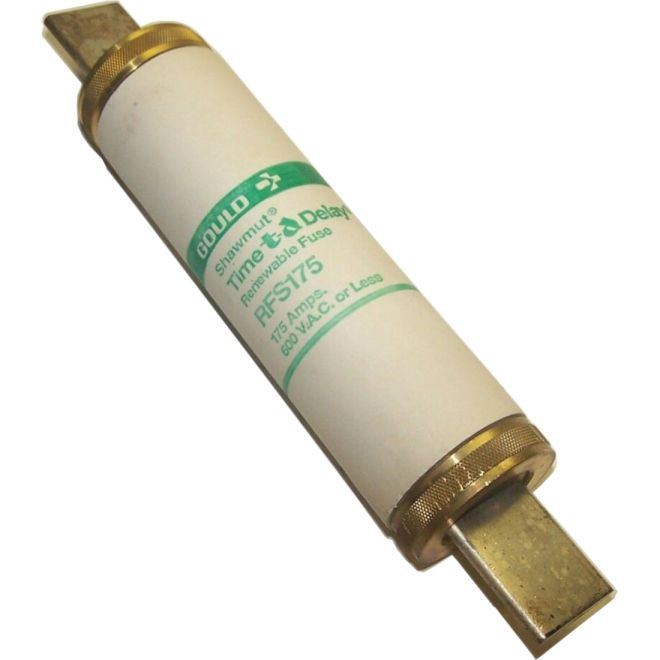

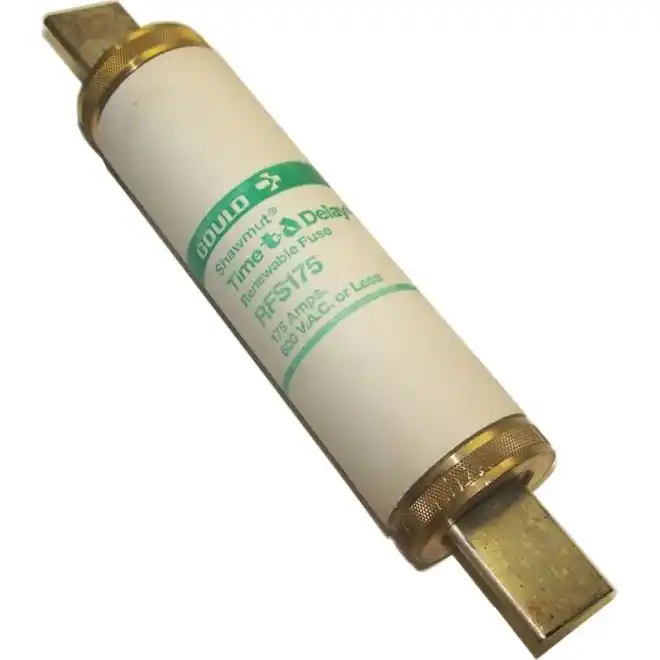

Mersen RFS175 Ferraz Class H Power Fuses 175A
SKU#:
27811
Ferraz Shawmut RF and RFS general purpose fuses are suitable for application where available short circuit cur-rents do not exceed 10,000 amperes. Mersen RF and RFS renewable fuses use matched RL and RLS die-cut zinc links from 1 to 600 amperes in 32 ratings.
| Brand | Mersen / Ferraz Shawmut / Gould |
|---|---|
| Manufacturer Part Number | RFS175 |
| Manufacturer Alternate Number | W214770 |
| UPC | 6893872117 |
| Rated Voltage AC | 600VAC |
| Frequency | 50/60Hz |
| Rated Current | 175A |
| Fuse Class | H |
| Speed/Characteristic | Fast-Acting |
| Mounting Type | Clip |
| Connection/Terminal Material | Brass |
| Terminal Type | Blade |
| Body/Insulating Material | FWGE |
| Type | Fast Acting |
| Height (mm) | 46mm |
| Width (mm) | 46mm |
| Depth (Length) (mm) | 245mm |
| Weight (lbs) | 1.42 |
| UOM | ea |
