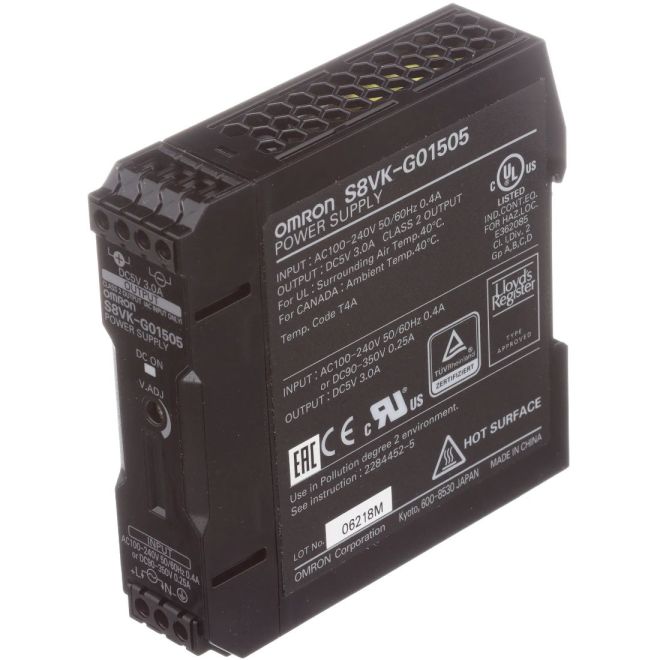

Omron S8VK-G01505 15W 5VDC 3A Power Supply
SKU#:
420042
Omron's UL Class 2 S8VK-G switching power supplies, available in 15W to 60W output models, are designed for limited DC power source applications to prevent fire hazards. S8VK-G01505 is UL508 listed and offer overload and overvoltage protection. Increased temperature range provides stable operation wherever the S8VK is installed. The wide operating temperature range of between -40 to 70°C (-40 to 158°F) guarantees operation in any environment where other power supplies may start to fail.
| Brand | Omron Automation |
|---|---|
| Manufacturer Part Number | S8VK-G01505 |
| Manufacturer Alternate Number | S8VKG01505 |
| UPC | 4548583357648 |
| Supply Voltage Range | 100VAC - 240VAC |
| Output Voltage DC | 5VDC |
| Output Power | 15W |
| Output Current | 3A |
| Electrical Connection | Screw Terminals |
| Cooling Type | Natural (Gravity) |
| Enclosure Type | Enclosed |
| Mounting Type | DIN Rail |
| Overload Protection | Yes |
| Overvoltage Protection | Yes |
| Series Operation | Yes |
| Parallel Operation | Yes |
| Power Boost, Momentary | Yes, 120% Rated Voltage, 10s or Less |
| Standards | cULus, UL508 Class 2, CSA Class 2, VDE, Lloyds, SEMI F47-0706 |
| Height (mm) | 90mm |
| Width (mm) | 22.5mm |
| Depth (Length) (mm) | 90mm |
| Weight (lbs) | 0.33 |
| UOM | ea |
