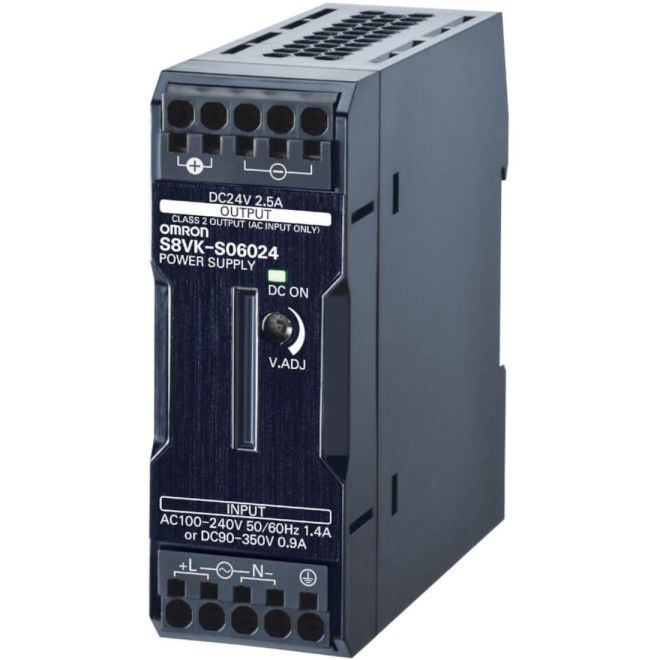

Omron S8VK-S06024 60W 24VDC 2.5A Power Supply
SKU#:
583883
Increased temperature range provides stable operation wherever the S8VK is installed. The wide operating temperature range of between -40 to 70°C (-40 to 158°F) guarantees operation in any environment where other power supplies may start to fail. Simply click onto a standard DIN rail using one hand to mount in a flash. Effortless and time saving! Another key feature of S8VK-S06024 is the double set of DC output terminals (three for negative terminal), making wiring quicker and easier.
| Brand | Omron Automation |
|---|---|
| Manufacturer Part Number | S8VK-S06024 |
| Manufacturer Alternate Number | S8VKS06024 |
| UPC | 4548583761117 |
| Supply Voltage Range | 100VAC - 240VAC |
| Output Voltage DC | 24VDC |
| Output Power | 60W |
| Output Current | 2.5A |
| Electrical Connection | Push-in Plus Terminal |
| Cooling Type | Natural (Gravity) |
| Enclosure Type | Covered |
| Mounting Type | DIN Rail |
| Overload Protection | Yes |
| Overvoltage Protection | Yes |
| Series Operation | Yes |
| Parallel Operation | Yes |
| Power Boost, Momentary | Yes, 150% Rated Voltage, 10s or Less |
| Standards | UL, UL508, cUL:CSA C22.2, cUR: CSA C22.2, Lloyds, PELV |
| Height (mm) | 90mm |
| Depth (Length) (mm) | 90mm |
| Weight (lbs) | 0.55 |
| UOM | ea |
