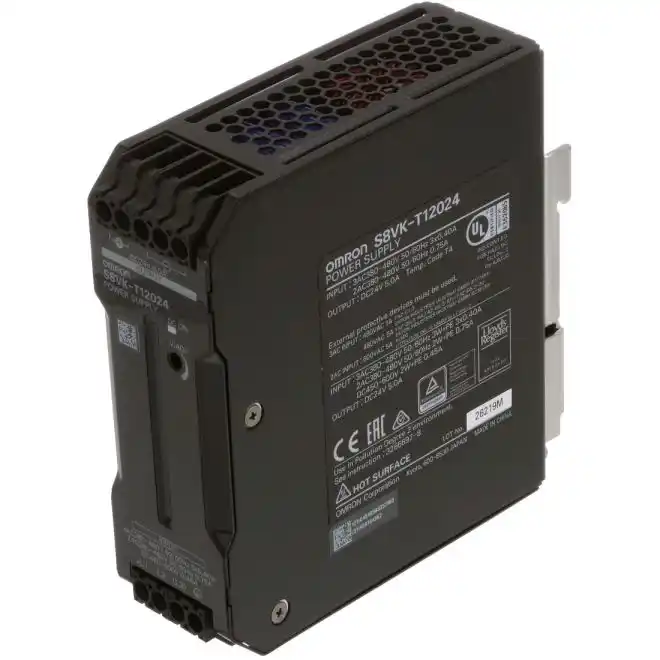

Omron S8VK-T12024 120W 24VDC 5A Power Supply
SKU#:
431038
Increased temperature range provides stable operation wherever the S8VK is installed. The wide operating temperature range of between -40 to 70°C (-40 to 158°F) guarantees operation in any environment where other power supplies may start to fail. Simply click onto a standard DIN rail using one hand to mount in a flash. Effortless and time saving! Another key feature of S8VK-T12024 is the double set of DC output terminals (three for negative terminal), making wiring quicker and easier.
| Brand | Omron Automation |
|---|---|
| Manufacturer Part Number | S8VK-T12024 |
| Manufacturer Alternate Number | S8VKT12024 |
| UPC | 4548583357983 |
| Supply Voltage Range | 320VAC - 576VAC 3-Phase, 340VAC - 576VAC 2-Phase, 450VDC - 810VDC |
| Output Voltage DC | 24VDC |
| Output Power | 120W |
| Output Current | 5A |
| Electrical Connection | Screw Terminals |
| Cooling Type | Natural (Gravity) |
| Enclosure Type | Enclosed |
| Mounting Type | DIN Rail |
| Overload Protection | Yes |
| Overvoltage Protection | Yes |
| Under-Voltage Alarm | Yes |
| Standards | cULus, UL508, UL60950-1, EN/VDE: EN50178 (=VDE 0160), EN 60950-1 (=VDE 0805), ANSI/ISA 12.12.01 (Hazardous Locations) |
| Height (mm) | 125mm (4.94") |
| Width (mm) | 40mm |
| Depth (Length) (mm) | 113mm |
| Weight (lbs) | 1.54 |
| UOM | ea |
