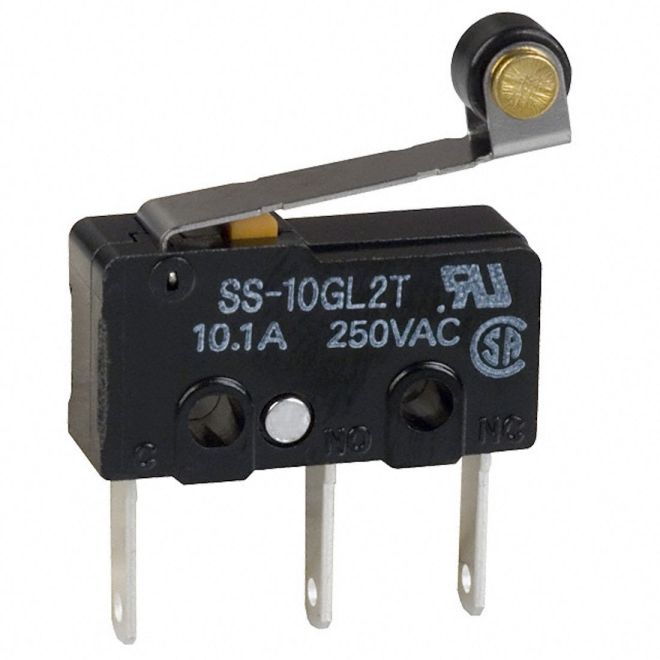

Omron SS-10GL2T Hinge Roller Lever Basic Switch
SKU#:
3043
The SS-10GL2T subminiature basic switch offers high reliability and security. The Omron's best-selling micro switches of a wide variety from 0.1A to 10.1A. A variety of models are available, with operating force ranging from low to high. Two split springs ensure a high stability and durability of 30,000,000 operations. 1 mm MIN Contact Gap Models available for Interlock applications.
| Brand | Omron Automation |
|---|---|
| Manufacturer Part Number | SS-10GL2T |
| Manufacturer Alternate Number | SS10GL2T |
| UPC | 4536854067037 |
| Terminal Type | Quick Connect |
| Rated Current | 10.1 A |
| Actuator Type | Hinge Roller Lever |
| Switch Type | SPDT |
| Electrical Operations Minimum | 50,000 Operations |
| Mechanical Operations Minimums | 10,000,000 Operations |
| Mounting Type | Chassis 2.4mm Hole |
| IP Rating | IP40 |
| Type | Subminiature Basic |
| Height (mm) | 17.4mm |
| Width (mm) | 19.8mm |
| Depth (Length) (mm) | 6.4mm |
| Weight (lbs) | 0.01 |
| UOM | ea |
