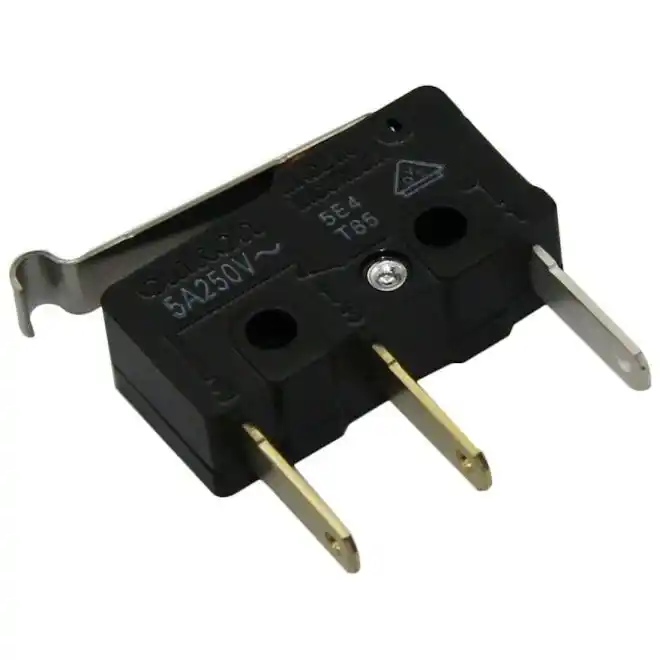

Omron SS-5GL13T Simulated Roller Lever Switch
SKU#:
3069
The SS-5GL13T subminiature basic switch offers high reliability and security. The Omron's best-selling micro switches of a wide variety from 0.1A to 10.1A. A variety of models are available, with operating force ranging from low to high. Two split springs ensure a high stability and durability of 30,000,000 operations. 1 mm MIN Contact Gap Models available for Interlock applications.
| Brand | Omron Automation |
|---|---|
| Manufacturer Part Number | SS-5GL13T |
| Manufacturer Alternate Number | SS5GL13T |
| UPC | 4536854068041 |
| Terminal Type | Quick Connect |
| Rated Current | 5A |
| Actuator Type | Simulated Roller Lever |
| Switch Type | SPDT |
| Electrical Operations Minimum | 200,000 Operations |
| Mechanical Operations Minimums | 30,000,000 Operations |
| Mounting Type | Chassis 2.4mm Hole |
| IP Rating | IP40 |
| Type | Subminiature Basic |
| Height (mm) | 13.6mm |
| Width (mm) | 19.8mm |
| Depth (Length) (mm) | 6.4mm |
| Weight (lbs) | 0.01 |
| UOM | ea |
