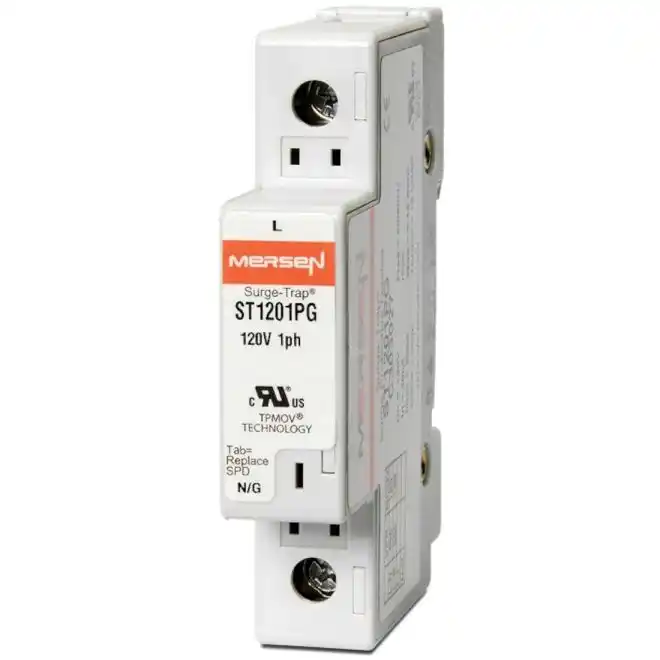

Mersen ST1201PG Ferraz Modular DIN-Rail SPD
SKU#:
377668
Surge-Trap® Modular Surge Protective Device (SPD) ST Series is a no-fuse, fail-safe surge suppressor featuring Mersen's patented TPMOV® technology inside. UL 1449 4th Edition approved, it is DIN-rail mountable featuring a fail-safe self-protected design, visual indicator, and a small footprint. A remote indicator option provides status to critical control circuitry. ST1201PG Surge-Trap Modular SPD has a high short circuit rating and a thermally protected MOV, which eliminates the need for additional overcurrent protection devices.
| Brand | Mersen / Ferraz Shawmut / Gould |
|---|---|
| Manufacturer Part Number | ST1201PG |
| Manufacturer Alternate Number | C303027 |
| UPC | 782001361372 |
| Rated Voltage AC | 120VAC |
| RoHS Compliant | Yes |
| UL Rating Type | Type 1 Component Assembly |
| Nominal Discharge Current | 20kA |
| Max Discharge Current | 50kA per Phase |
| Protection Modes | L-G, L-N |
| Power Phase | 1-Phase |
| Short Circuit Current Rating (SCCR) | 200kA |
| Number of Poles | 1 |
| Mounting Type | DIN Rail |
| Terminal Type | Box |
| Wire Size | #6 to #14 AWG |
| Indicator | Yes |
| Height (mm) | 69mm |
| Width (mm) | 18mm |
| Depth (Length) (mm) | 91mm |
| Weight (lbs) | 0.25 |
| UOM | ea |
