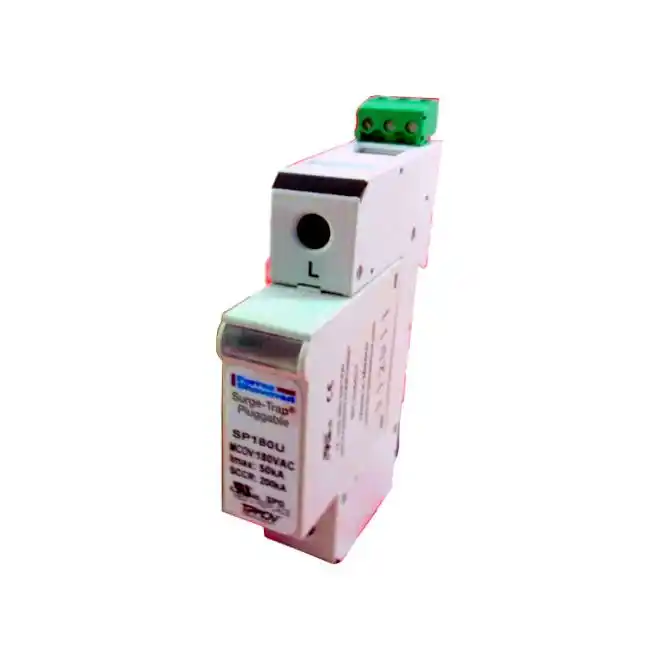

Mersen STP1201PGM Ferraz Pluggable DIN-Rail SPD
SKU#:
417657
Surge-Trap® Pluggable Surge Protective Device (SPD) STP series is a no-fuse, fail-safe surge suppressor featuring Mersen's patented TPMOV® technology inside. UL 1449 4th Edition approved, it is DIN-rail mountable featuring a fail-safe self-protected design, visual indicator, and a small footprint. A remote indicator option provides status to critical control circuitry. STP1201PGM Surge-Trap Pluggable SPD has a high short circuit rating and a thermally protected MOV, which eliminates the need for additional overcurrent protection devices. Mersen STP1201PGM is comparable to Allen Bradley 4983-DS120-401.
| Brand | Mersen / Ferraz Shawmut / Gould |
|---|---|
| Manufacturer Part Number | STP1201PGM |
| Manufacturer Alternate Number | C1027274 |
| UPC | 782001417178 |
| Rated Voltage AC | 120VAC |
| RoHS Compliant | Yes |
| UL Rating Type | Type 1 Component Assembly |
| Nominal Discharge Current | 20kA |
| Max Discharge Current | 50kA per Phase |
| Protection Modes | L-G, L-N |
| Power Phase | 1-Phase |
| Short Circuit Current Rating (SCCR) | 200kA |
| Number of Poles | 1 |
| Mounting Type | DIN Rail |
| Wire Size | #6 to #14 AWG |
| Indicator | Yes |
| Height (mm) | 72mm (2.83") |
| Width (mm) | 16mm |
| Depth (Length) (mm) | 99mm |
| Weight (lbs) | 0.42 |
| UOM | ea |
