ACME TB50A005C Transformer .050 kVA 208-460 Primary 115
SKU#:
576861

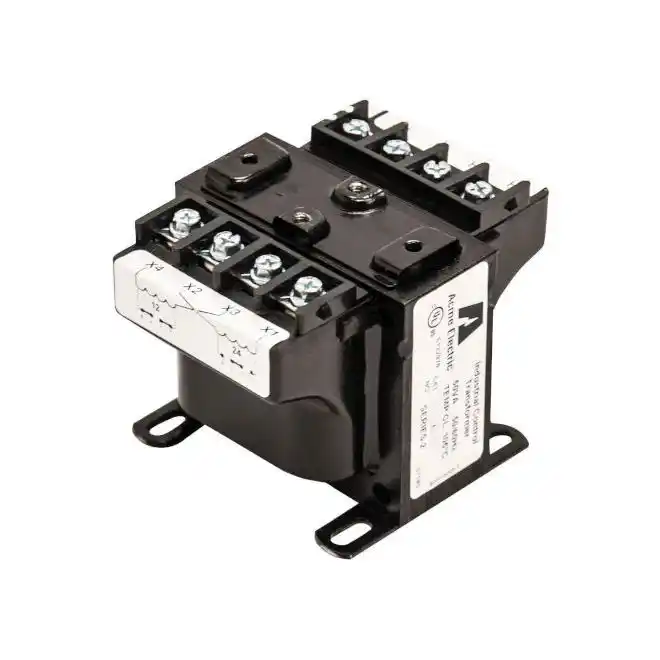

Acme's TB50A005C Industrial Control Transformers are especially designed to accommodate the momentary current inrush caused when electromagnetic components are energized without sacrificing
secondary voltage stability beyond practical limits. The transformer's windings and internal terminations are sealed within an epoxy encapsulant encased in a durable thermoplastic end cap, protecting them from potentially damaging moisture, dirt and other ambient contaminants. Acme’s TB Series transformers are dry-type, step-down transformers with the secondary control circuit isolated from the primary line circuit to assure maximum safety.
| Brand | Acme Electric / Hubbell |
|---|---|
| Manufacturer Part Number | TB50A005C |
| UPC | 47503003770 |
| Input Voltage | 208V / 230V / 460V |
| Output Voltage | 115V |
| Rated Power | 50VA |
| Frequency | 50/60 Hz |
| Height (mm) | 96mm / 3.78 inch |
| Width (mm) | 76mm |
| Depth (Length) (mm) | 80mm / 3.15 inch |
| Weight (lbs) | 2.7 |
| UOM | ea |
