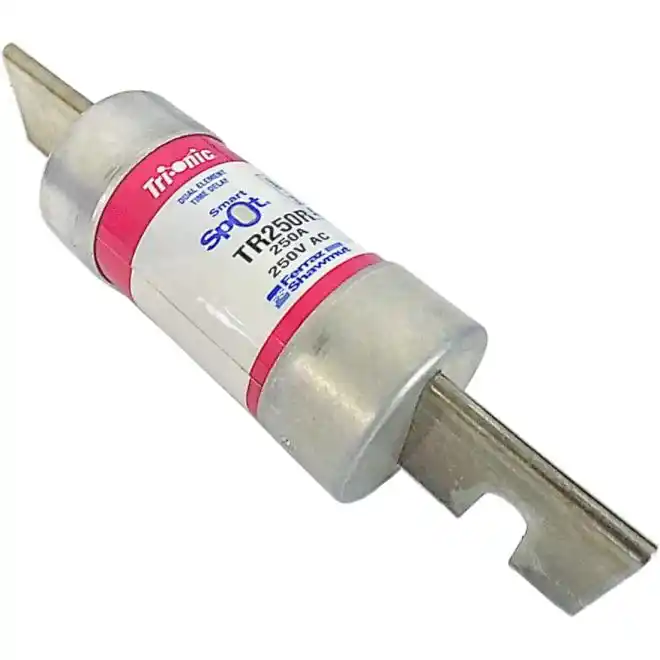

Mersen TR250RID Ferraz Time Delay/Class RK5 Fuse
SKU#:
27536
With advanced material technology added to the existing product, Mersen Tri-Onic® TR and TRS current-limiting time-delay fuses are engineered for overcurrent protection of motors and transformers, service entrance equipment, feeder and branch circuits. TR250RID Tri-Onic fuse's proven time-delay characteristic safely handles harmless starting currents and inrush currents associated with today's motors and transformers. Now available with optional SmartSpot® blown fuse indication technology.
| Brand | Mersen / Ferraz Shawmut / Gould |
|---|---|
| Manufacturer Part Number | TR250RID |
| Manufacturer Alternate Number | P201378 |
| UPC | 782001415419 |
| Rated Voltage AC | 250VAC |
| Rated Voltage DC | 250VDC |
| Frequency | 50/60Hz |
| Rated Current | 250A |
| RoHS Compliant | Yes |
| Fuse Class | RK5 |
| Speed/Characteristic | Time Delay |
| Mounting Type | Clip |
| Short Circuit Current Rating (SCCR) | 200kA |
| Indicator | SmartSpot® |
| Connection/Terminal Material | Tin-Plated Copper |
| Terminal Type | Blade |
| Body/Insulating Material | Poly Tube |
| Type | Time Delay |
| Height (mm) | 53mm (2.12") |
| Width (mm) | 53mm |
| Depth (Length) (mm) | 220mm |
| Weight (lbs) | 1.80 |
| UOM | ea |
