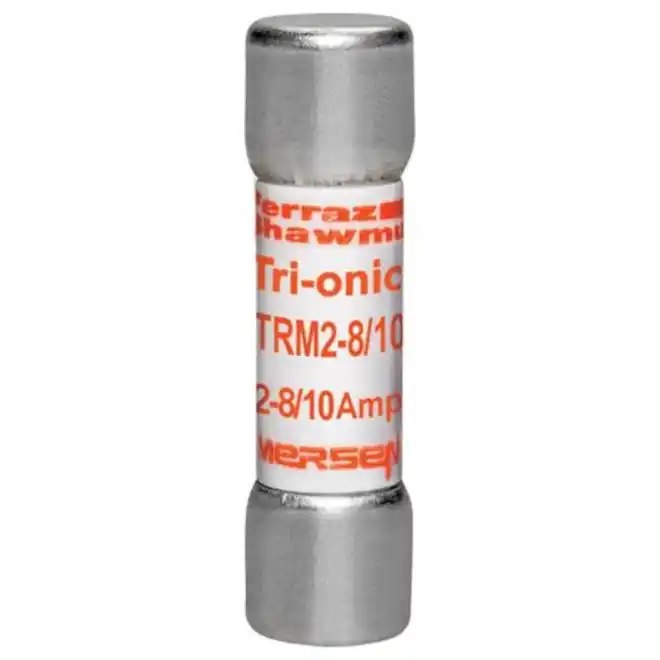

Mersen TRM2-8/10 Ferraz Time-Delay Midget Fuse
SKU#:
111404
Mersen Tri-Onic® TRM time-delay midget fuses are rated 250 volts AC and are offered in ampere ratings from 1/10 to 30A. TRM2-8/10 fuses have 12 seconds time-delay at 200% rating to provide supplemental protection of small motors, small transformers and other high inrush loads, plus many other 250 volt applications. (Not for Branch Circuit Protection).
| Brand | Mersen / Ferraz Shawmut / Gould |
|---|---|
| Manufacturer Part Number | TRM2-8/10 |
| Manufacturer Alternate Number | H211653 |
| UPC | 782001743352 |
| Rated Voltage AC | 250VAC |
| Rated Current | 2.8A |
| RoHS Compliant | Yes |
| Fuse Class | Midget |
| Speed/Characteristic | Time Delay |
| Mounting Type | Clip |
| Short Circuit Current Rating (SCCR) | 10kA |
| Connection/Terminal Material | Tin-Plated Copper |
| Terminal Type | Ferrule |
| Body/Insulating Material | GMG |
| Type | Time Delay Midget |
| Height (mm) | 11mm (0.43") |
| Width (mm) | 11mm |
| Depth (Length) (mm) | 38mm |
| Weight (lbs) | 0.01 |
| UOM | ea |
