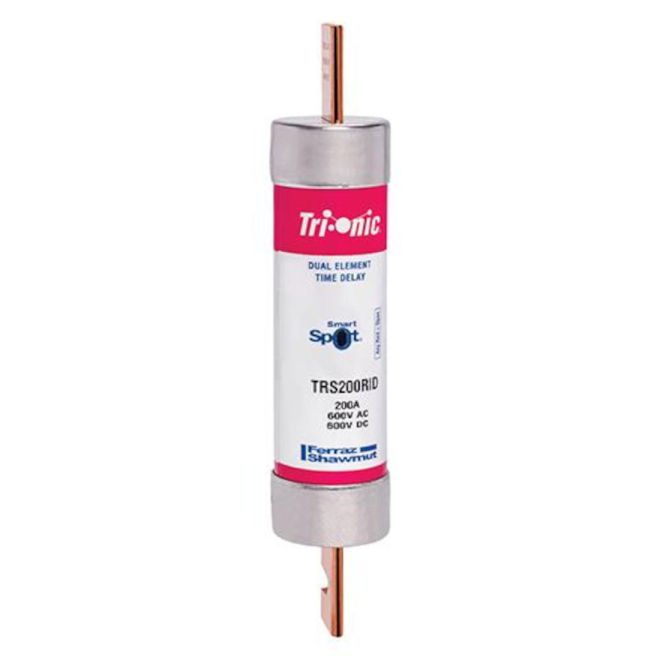

Mersen TRS200RID Ferraz Time Delay/Class RK5 Fuse
SKU#:
27585
With advanced material technology added to the existing product, Mersen Tri-Onic®: TR and TRS current-limiting time-delay fuses are engineered for overcurrent protection of motors and transformers, service entrance equipment, feeder and branch circuits. TRS200RID Tri-Onic fuse's proven time-delay characteristic safely handles harmless starting currents and inrush currents associated with today's motors and transformers. Now available with optional SmartSpot®: blown fuse indication technology.
| Brand | Mersen / Ferraz Shawmut / Gould |
|---|---|
| Manufacturer Part Number | TRS200RID |
| Manufacturer Alternate Number | K218808 |
| UPC | 782001415228 |
| Rated Voltage AC | 600VAC |
| Rated Voltage DC | 600VDC |
| Frequency | 50/60Hz |
| Rated Current | 200A |
| Fuse Class | RK5 |
| Speed/Characteristic | Time Delay |
| Mounting Type | Clip |
| Short Circuit Current Rating (SCCR) | 200kA |
| Indicator | SmartSpot® |
| Connection/Terminal Material | Tin-Plated Copper |
| Terminal Type | Blade |
| Body/Insulating Material | Poly Tube |
| Type | Time Delay |
| Height (mm) | 46mm |
| Width (mm) | 46mm |
| Depth (Length) (mm) | 245mm |
| Weight (lbs) | 1.56 |
| UOM | ea |
