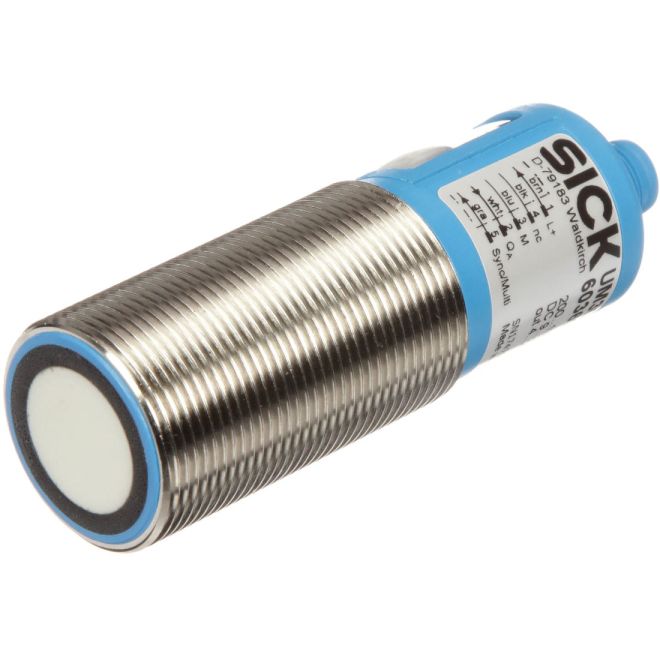

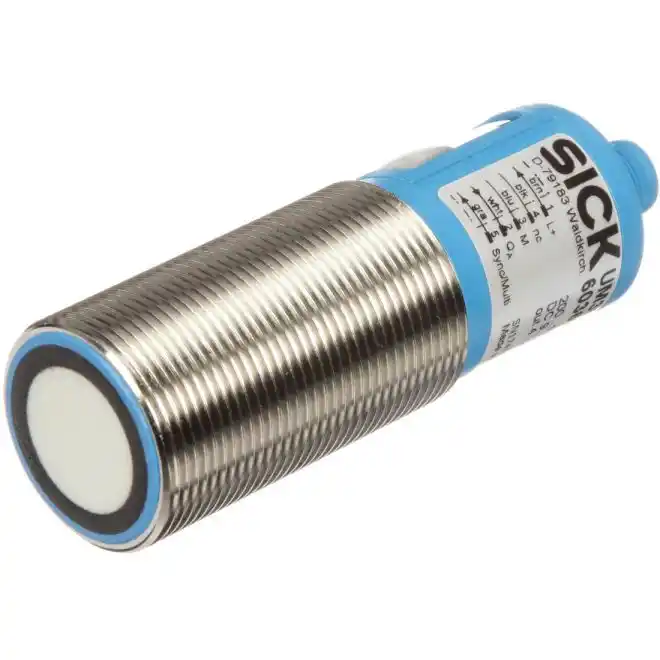

SICK UM30-213113 6036918 Ultrasonic Sensors M30
SKU#:
406913
SICK sensors of the UM30 product family impress with high flexibility. Various sensing ranges of up to 8,000 mm as well as countless configuration options leave no applications unsolved. The high measurement accuracy provided by internal temperature compensation, along with color-independent object detection, immunity to contamination, and a wide operating temperature range up to 70 °C all ensure reliable operation, even under the most challenging conditions.
| Brand | SICK |
|---|---|
| Manufacturer Part Number | UM30-213113 |
| Manufacturer Alternate Number | 6036918 |
| Size | M30 |
| Body Type | Cylindrical |
| Type | Ultrasonic |
| Supply Voltage Range | 9VDC - 30VDC |
| Material | Metal, Nickel-Plated Brass, PBT |
| Sensing Method | Ultrasonic |
| Sensing Direction | Straight |
| Sensing Range | 200mm - 1,300mm, 2,000mm |
| Output Type | Current/Voltage |
| Electrical Connection | Male Connector M12, 5-Pin |
| IP Rating | IP65, IP67 |
| Height (mm) | 30mm (1.18") |
| Width (mm) | 30mm |
| Depth (Length) (mm) | 84mm |
| Weight (lbs) | 0.33 |
| UOM | ea |
