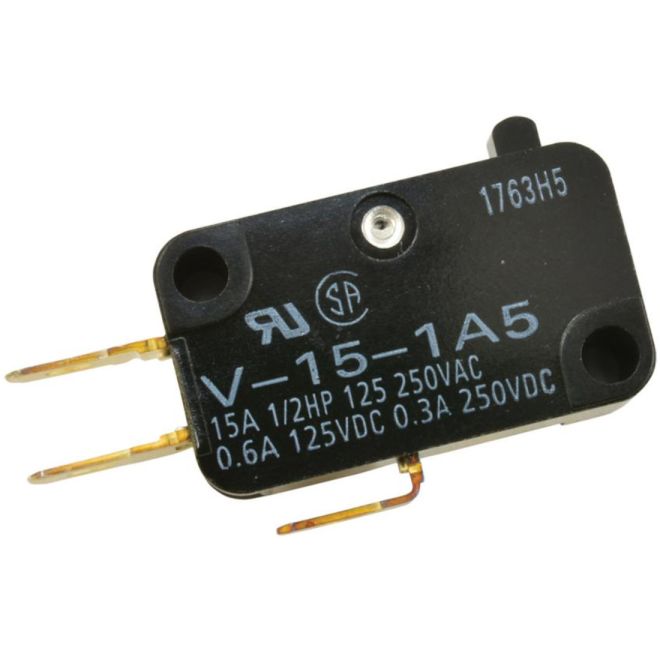

Omron V-15-1A5 Pin Plunger Miniature Basic Switch
SKU#:
340187
Omron V miniature basic switch that offers high reliability and security. Wide variation of best-selling micro switches with switching currents of 10A to 21A. V-15-1A5 can be used for interrupting current when doors are opened or closed. Available in two types of cases: thermoplastic resin and thermosetting resin. Indium contact models available for DC load.
| Brand | Omron Automation |
|---|---|
| Manufacturer Part Number | V-15-1A5 |
| Manufacturer Alternate Number | V151A5 |
| UPC | 4536854143038 |
| Terminal Type | Solder Terminal |
| Rated Current | 15 A at 250 VAC |
| Actuator Type | Pin Plunger |
| Switch Type | SPDT |
| Electrical Operations Minimum | 100,000 Operations |
| Mechanical Operations Minimums | 50,000,000 Operations |
| Mounting Type | Chassis 3.1mm Hole |
| IP Rating | IP40 |
| Type | Miniature Basic |
| Height (mm) | 17.8mm |
| Width (mm) | 37.8mm |
| Depth (Length) (mm) | 10.3mm |
| Weight (lbs) | 0.01 |
| UOM | ea |
