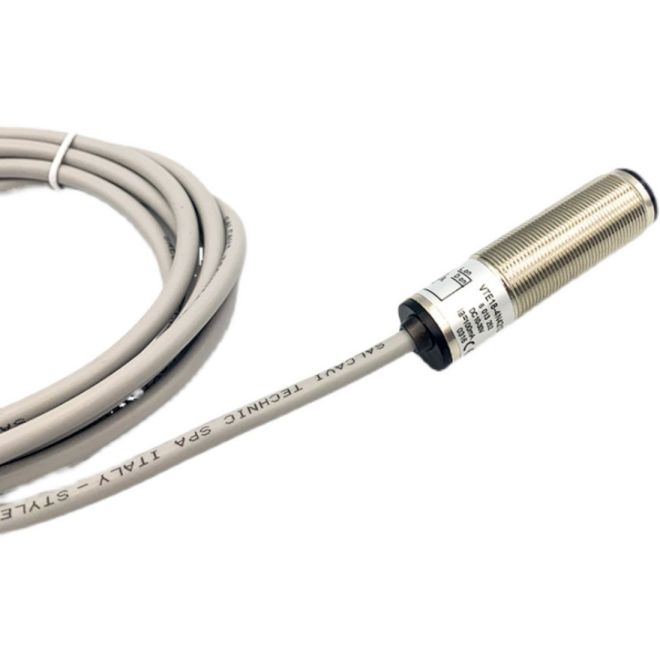

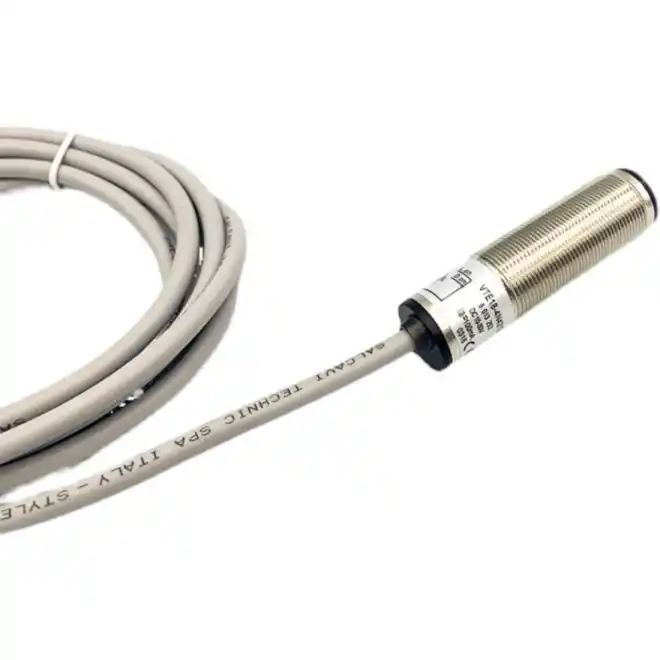

SICK VTE18-4N4212 6013252 M18 Photoelectric Sensor
SKU#:
179665
SICK V18 family has the widest portfolio of M18 sensors on the market. Users can choose from a variety of options, including sensors with or without sensitivity control, metal or plastic housings and straight or right-angle housing designs. Due to the wide varietyof options, the VTE18-4N4212 6013252 is an ideal solution for countless applications. Some of these applications include detection of clear bottles on packaging machines, parts detection on metal forming pressesand product detection on conveyors.
| Brand | SICK |
|---|---|
| Manufacturer Part Number | VTE18-4N4212 |
| Manufacturer Alternate Number | 6013252 |
| Size | M18 |
| Body Type | Cylindrical |
| Type | Photoelectric Proximity, Energetic |
| Operation | Light/Dark Switching |
| Supply Voltage Range | 10VDC - 30VDC |
| Material | Metal, Nickel-Plated Brass |
| Sensing Method | Proximity |
| Sensing Direction | Axial |
| Sensing Range | 5mm - 400mm |
| Output Type | NPN |
| Light Source | Infrared LED |
| Electrical Connection | Cable, 4-Wire, 2m |
| Cable Length | 2m |
| IP Rating | IP67 |
| Height (mm) | 18mm (0.71") |
| Width (mm) | 18mm |
| Depth (Length) (mm) | 64mm |
| Weight (lbs) | 0.26 |
| UOM | ea |
