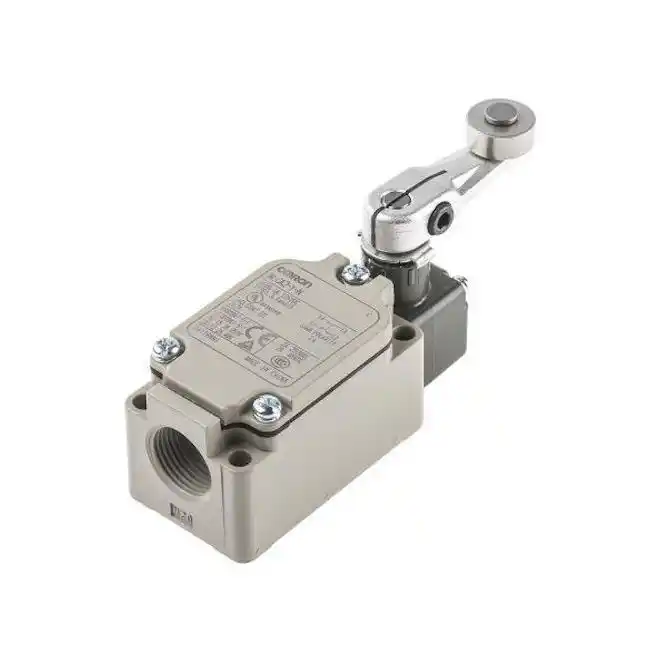

Omron WLCA2-2Y-N Roller Lever Limit Switch
SKU#:
567786
Omron WL-N/WL two-circuit limit switches that can be selected to match the operating environment and application. Wide variety of head shapes, including roller lever, plunger, flexible rod, and fork lock lever switches. You can select the optimum actuator shape for the workpiece shape and movement from a variety of actuators. In addition to general detection, we also have environment resistant models like WLCA2-2Y-N for harsh environments, sputter resistant models for welding processes, and long-life models for high-frequency use.
| Brand | Omron Automation |
|---|---|
| Manufacturer Part Number | WLCA2-2Y-N |
| Manufacturer Alternate Number | WLCA22YN |
| UPC | 4548583485303 |
| Rated Current | 10 A at 500 VAC |
| Actuator Type | Roller Lever |
| Switch Type | Two-Circuit, Double Break |
| Electrical Operations Minimum | 750,000 Operations |
| Mechanical Operations Minimums | 15,000,000 Operations |
| IP Rating | IP67 |
| Height (mm) | 125mm (4.94") |
| Width (mm) | 40mm |
| Depth (Length) (mm) | 53.2mm |
| Weight (lbs) | 0.56 |
| UOM | ea |
