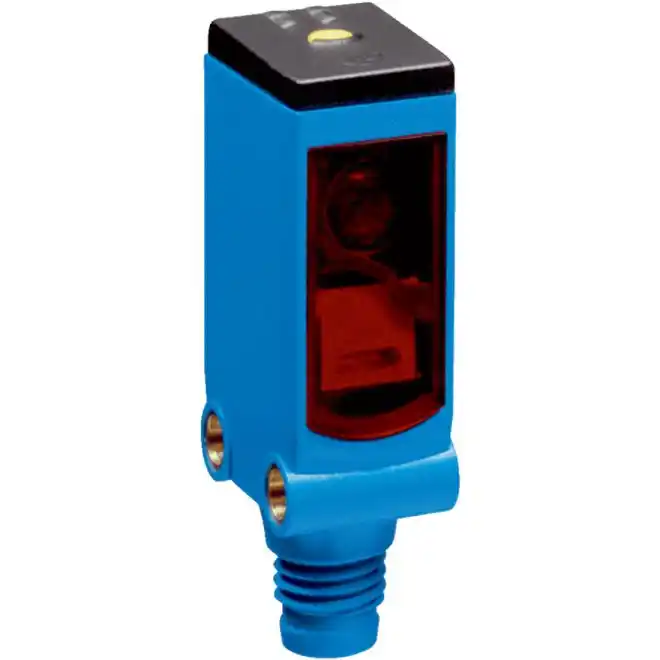

SICK WLG4S-3P2232 1044186 Photoelectric Sensors
SKU#:
391768
SICK WLG4S-3 is a retro-reflective sensor enclosed in a slim housing that reliably detects transparent objects. Even small gaps between objects, highly transparent thin films, and vials with flow marks and severe lens defects can be reliably detected. Setting the sensor requires a single press of the teach-in pushbutton. WLG4S-3P2232 1044186 sensor reliably adjusts for any changes to environmental conditions such as temperature, dust or dirt. The single-lens autocollimation system "sees" through even the smallest of openings. The Pin-Point LED's small but intense light spot enables quick and easy alignment even when using the smallest reflectors. Plus, variantswith IO-Link provide continuous diagnostics data.
| Brand | SICK |
|---|---|
| Manufacturer Part Number | 1044186 |
| Manufacturer Alternate Number | WLG4S-3P2232 |
| Body Type | Rectangular |
| Type | Photoelectric Retro-Reflective, Autocollimation |
| Operation | Light/Dark Switching |
| Supply Voltage Range | 10VDC - 30VDC |
| Material | Plastic, ABS |
| Sensing Method | Retro-Reflective |
| Sensing Range | 10mm - 5m |
| Output Type | PNP |
| Output Function | Complementary |
| Light Source | Red LED |
| Electrical Connection | Male Connector M8, 4-pin |
| IP Rating | IP66, IP67 |
| Special Function | Detecting Transparent Objects |
| Height (mm) | 41.8mm (1.65") |
| Width (mm) | 12.2mm |
| Depth (Length) (mm) | 17.3mm |
| Weight (lbs) | 0.10 |
| UOM | ea |
