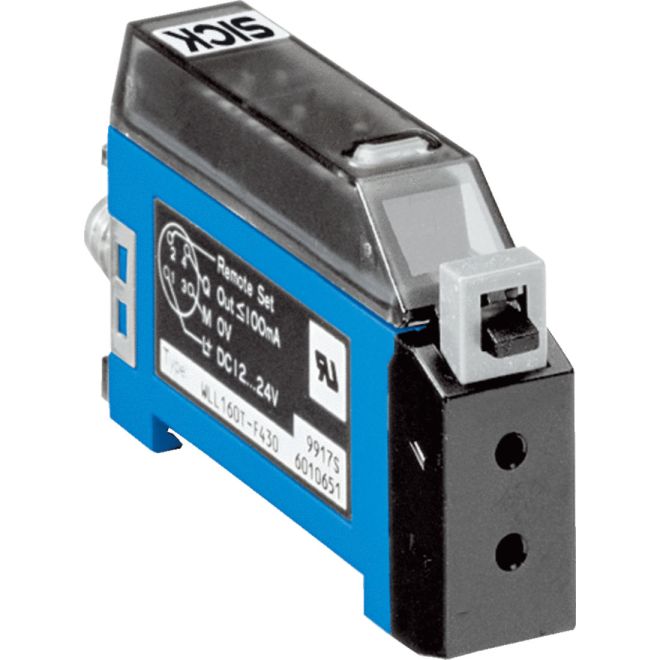

SICK WLL160T-F430 6010651 Fiber Optic Sensors
SKU#:
134678
Simple handling, large scanning distances, reduced number of types thanks to integrated L.ON/D.ON switches are system focal points. All SICK W160 optics variants are available in two housing models with axial or 90° light emission. The WLL160T-F430 photoelectric switch for fiber-optic cables with switching point setting, manually per potentiometer or automatically per Teach-In at the push of a button, rounds out the W160 series. Plastic fiber-optic cables of the LL3 series in approximately 90 different options are available as accessories. SICK WLL160T-F430 6010651 is comparable to SICK Replacement Type: WLL170T-2P430 Part number: 6033950, Type: GLL170T-B434 Part number: 6063341.
| Brand | SICK |
|---|---|
| Manufacturer Part Number | 6010651 |
| Manufacturer Alternate Number | WLL160T-F430 |
| Body Type | Rectangular |
| Type | Photoelectric Fiber-Optic |
| Operation | Light/Dark Switching |
| Supply Voltage Range | 10VDC - 24VDC |
| Material | Plastic, ABS |
| Sensing Method | Fiber Optic |
| Sensing Range | 0m - 2m |
| Output Type | PNP |
| Light Source | Red LED |
| Electrical Connection | Male Connector M8, 4-pin |
| IP Rating | IP66 |
| Height (mm) | 69.6mm |
| Width (mm) | 12mm |
| Depth (Length) (mm) | 41.2mm |
| Weight (lbs) | 0.23 |
| UOM | ea |
