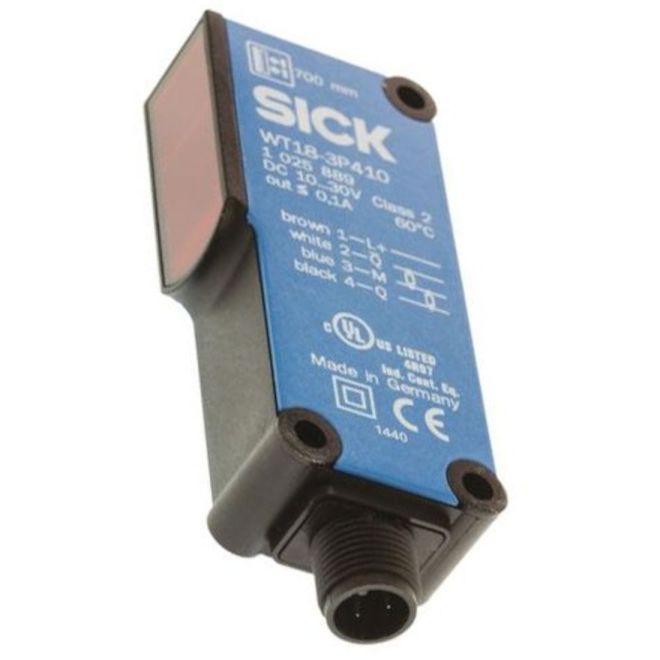

SICK WT18-3P410 1025889 Photoelectric Sensors
SKU#:
314098
SICK's W18-3 photoelectric sensor series reliably detects objects under difficult application conditions. Different variants are available, including proximity sensors with high-precision background suppression, retro-reflective sensors with autocollimation and through-beam sensors with high operating reserves. WT18-3P410 1025889 sensors are immune to ambient light, background reflections and light absorbing objects, making them a reliable sensor solution. The W18-3 series can also be customized according to the customer's requirements in critical applications. And, these sensors are available with IO-Link, which is the new sensor communication standard of the future. SICK WT18-3P410 is comparable to SICK Replacement Type: WTB16I-24161120A00 Part number: 1218669, Replacement Type: WT18-2P410 Part number: 1012895.
| Brand | SICK |
|---|---|
| Manufacturer Part Number | 1025889 |
| Manufacturer Alternate Number | WT18-3P410 |
| Body Type | Rectangular |
| Type | Photoelectric Proximity, Background Suppression |
| Operation | Light/Dark Switching |
| Supply Voltage Range | 10VDC - 30VDC |
| Material | Plastic, ABS |
| Sensing Method | Diffuse |
| Sensing Range | 10mm - 700mm |
| Output Type | PNP |
| Output Function | Complementary |
| Light Source | Infrared LED |
| Electrical Connection | Male Connector M12, 4-Pin |
| IP Rating | IP67 |
| Height (mm) | 75.5mm (2.97") |
| Width (mm) | 17.6mm |
| Depth (Length) (mm) | 33.5mm |
| Weight (lbs) | 0.16 |
| UOM | ea |
