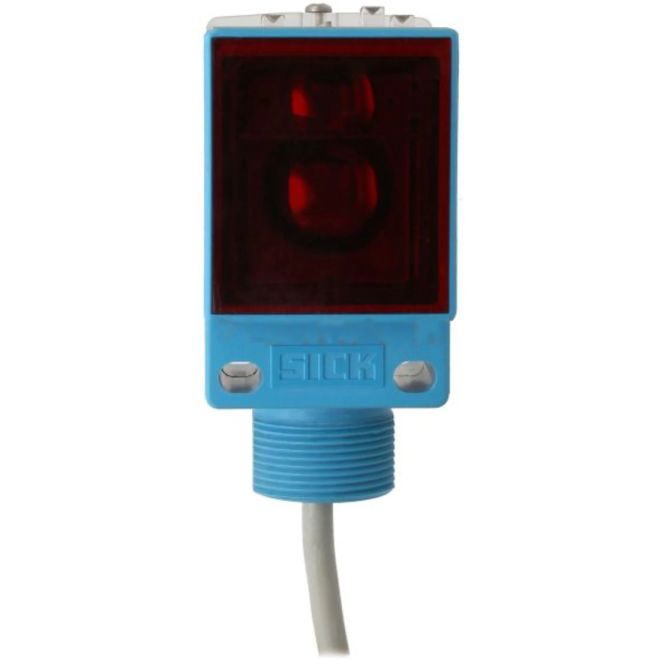

SICK WT2000-R1122 7023064 Photoelectric Sensors

SKU#:

134952

This item is discontinued.
SICK W2000 sensor family offers advanced features with application flexibility and long sensing ranges. Designed with an IP67-rated housing and a watertight front window, the WT2000-R1122 7023064 is ideal for harsh duty applications. The gasketed top cover can be easily opened to provide access to timing functions, sensitivity adjustments, and a light/dark switching mode. The W2000 family also features SICK's custom Application-Specific Integrated Circuit (ASIC). This superior technology eliminates crosstalk interference and provides immunity to ambient lighting. Three LED indicators provide easily identifiable power, signal and status information from any angle. The W2000 through-beam, retro-reflective and energetic proximity variants enable users to chose the version suited for their application needs. SICK WT2000-R1122 is comparable to Allen Bradley 42GRP9062.
Specifications
Brand SICK
Manufacturer Part Number 7023064
Manufacturer Alternate Number WT2000-R1122
Body Type Rectangular
Type Photoelectric Proximity
Operation Light/Dark Switching
Supply Voltage Range 24VAC/24VDC - 240VAC/240VDC
Material Plastic, Glassfiber Reinforced Plastic
Sensing Method Diffuse
Sensing Range 0m - 3.5m
Output Type Relay, Electrically Isolated
Output Function Change Over Contacts
Light Source Infrared LED
Electrical Connection Cable, 5-Wire, 2m
Cable Length 2m
IP Rating IP67
Special Function Off Delay, On Delay
Height (mm) 73.7mm
Width (mm) 45mm
Depth (Length) (mm) 48.6mm
Weight (lbs) 0.22
UOM ea
