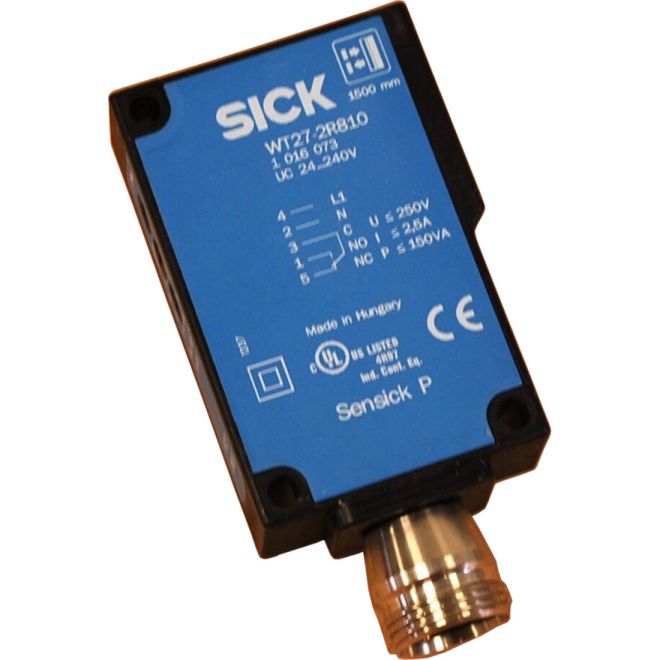

SICK WT27-2R810 1016073 Photoelectric Sensors
SKU#:
135015
SICK WT27-2R810 1016073 IR photoelectric proximity switch is an optoelectronic sensor and is used for detection of optical, non-contact detection of objects, animals, and people. SICK sensors are maintenance-free.
| Brand | SICK |
|---|---|
| Manufacturer Part Number | 1016073 |
| Manufacturer Alternate Number | WT27-2R810 |
| Body Type | Rectangular |
| Type | Photoelectric Proximity, Background Suppression |
| Operation | Light/Dark Switching |
| Supply Voltage Range | 24VAC/24VDC - 240VAC/240VDC |
| Material | Plastic, ABS |
| Sensing Method | Diffuse |
| Sensing Range | 100mm - 1.5m |
| Output Type | Relay, Electrically Isolated |
| Output Function | Change Over Contacts |
| Light Source | Infrared LED |
| Electrical Connection | Mini Connector 7/8", 5-Pin |
| IP Rating | IP65 |
| Special Function | Off Delay, On Delay, Switch On Delay, Time Delay Off |
| Height (mm) | 80mm (3.15") |
| Width (mm) | 24.6mm |
| Depth (Length) (mm) | 53.5mm |
| Weight (lbs) | 0.34 |
| UOM | ea |
