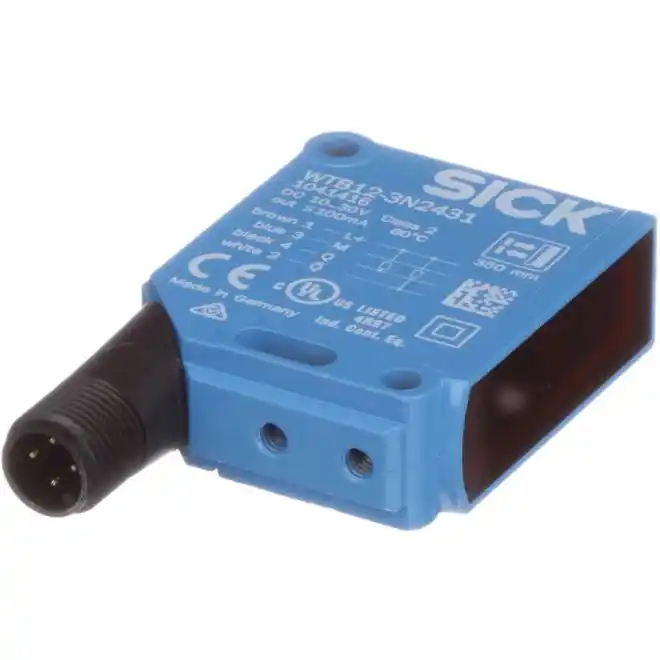

SICK WTB12-3N2431 1041416 Photoelectric Sensors
SKU#:
391499
SICK W12-3 family features a complete range of photoelectric sensors that are enclosed in a metal housing. There are a large number of variations that are available, including proximity, retro-reflective, through-beam, special laser and clear material versions. WTB12-3N2431 1041416 sensors offer many advantages over conventional optical sensors due to their reliable object detection and monitoring capabilities. Whether in packaging, pharmaceutical, or the food and beverage industries - the W12 family provides a solution for any application. SICK WTB12-3N2431 is comparable to Replacement Type: WT12-2N430 Part Number: 1016125.
| Brand | SICK |
|---|---|
| Manufacturer Part Number | 1041416 |
| Manufacturer Alternate Number | WTB12-3N2431 |
| Body Type | Rectangular |
| Type | Photoelectric Proximity, Background Suppression |
| Operation | Light/Dark Switching |
| Supply Voltage Range | 10VDC - 30VDC |
| Material | Metal |
| Sensing Method | Diffuse |
| Sensing Range | 20mm - 350mm |
| Output Type | NPN |
| Output Function | Complementary |
| Light Source | Red LED |
| Electrical Connection | Male Connector M12, 4-Pin |
| IP Rating | IP66, IP67, IP69K |
| Height (mm) | 48.5mm (1.91") |
| Width (mm) | 15.6mm |
| Depth (Length) (mm) | 42mm |
| Weight (lbs) | 0.26 |
| UOM | ea |
