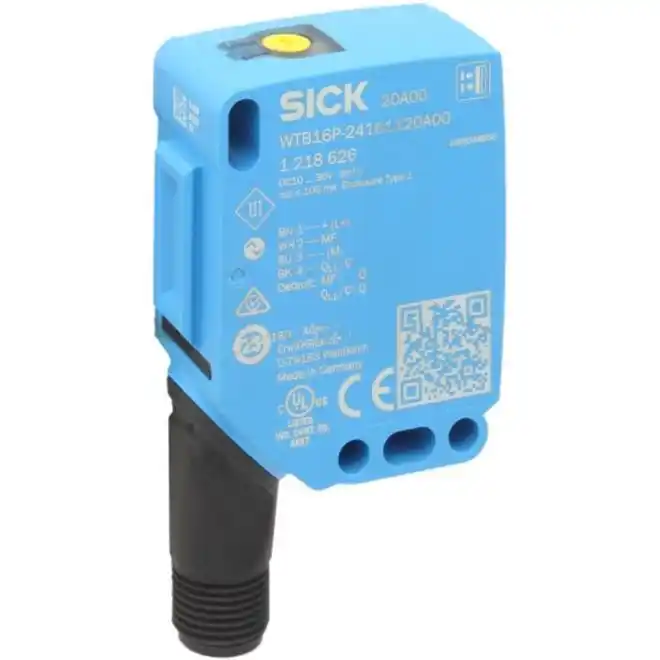

SICK WTB16P-24161120A00 1218626 Proximity Sensors
SKU#:
605447
Using the innovative BluePilot alignment aid, SICK sensors in the W16 product family can be commissioned in seconds. The blue LED display provides direct feedback to assist you with optimally aligning the sensors and reflectors as well as senders and receivers. In the case of the photoelectric proximity sensors, a push-and-turn mechanism enables the sensor to be adjusted quickly and precisely, thereby eliminating the customary time-consuming fine adjustment using rotary controls. BluePilot also reports any change in detection quality, e.g., due to contamination or vibrations, which ensures faults are detected in a timely manner, long before a production downtime occurs.
| Brand | SICK |
|---|---|
| Manufacturer Part Number | WTB16P-24161120A00 |
| Manufacturer Alternate Number | 1218626 |
| Body Type | Rectangular |
| Type | Photoelectric Proximity, Background Suppression |
| Operation | Light/Dark Switching |
| Supply Voltage Range | 10VDC - 30VDC |
| Material | Plastic, VISTAL |
| Sensing Method | Diffuse |
| Sensing Range | 10mm - 1000mm |
| Output Type | PNP, NPN |
| Light Source | Red LED |
| Electrical Connection | Male Connector M12, 4-Pin |
| IP Rating | IP66, IP67, IP69K |
| Height (mm) | 55.7mm (2.19") |
| Width (mm) | 20mm (0.787") |
| Depth (Length) (mm) | 42mm |
| Weight (lbs) | 0.16 |
| UOM | ea |
