Square D XB4 BG21 Key switch selector metal black
SKU#:
154398

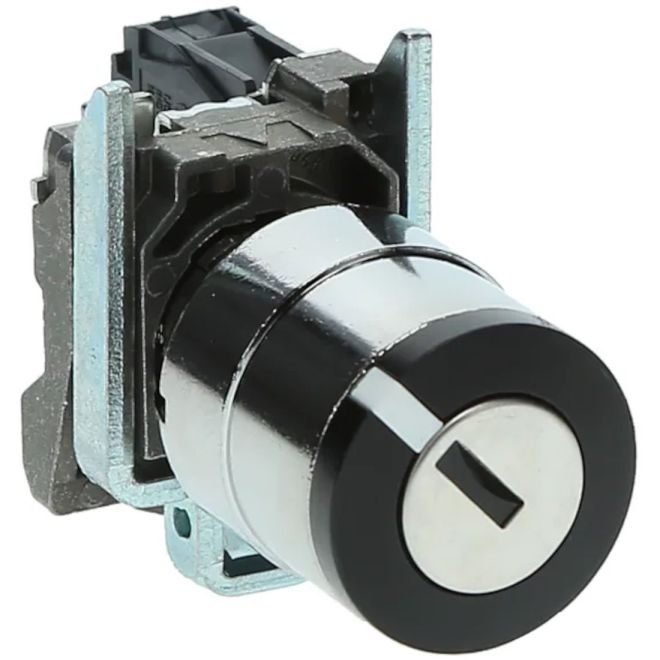

Schneider Electric XB4BG21 Harmony XB4 modular black key selector switch (key no.455) has 2 positions, operates with a stay-put mechanism with key withdrawal on the left position. It has a metal bezel. Telemecanique key selector switch provides a versatile interface for controlling your machines. It is easily installed into standard 22mm diameter cut-outs and connected to your control circuits with simple screw-clamp connections. Square D key selector switch provides a secure manner for authorized staff to switch between process or machine operating modes. It is impact resistant, dust resistant, water resistant and vibration resistant thanks to its IP66 / IP67 / IP69 / IP69K, making it ideal for operation in harsh environments.
| Brand | Schneider Electric / Telemecanique / Square D |
|---|---|
| Manufacturer Part Number | XB4BG21 |
| Manufacturer Alternate Number | XB4 BG21 |
| UPC | 3389110887136 |
| IP Rating | IP66, IP67, IP69, IP69K |
| Mounting Type | 22mm Hole Diameter |
| Color | Black |
| Shape | Round |
| Supply Voltage Range | 600 V |
| Terminal Type | Screw clamp terminals |
| Type | Selector switch |
| Action Type | Maintained |
| Contact Arrangement | 1 N/O |
| Height (mm) | 30mm (1.18") |
| Width (mm) | 47mm |
| Depth (Length) (mm) | 86mm |
| Weight (lbs) | 0.26 |
| UOM | ea |
