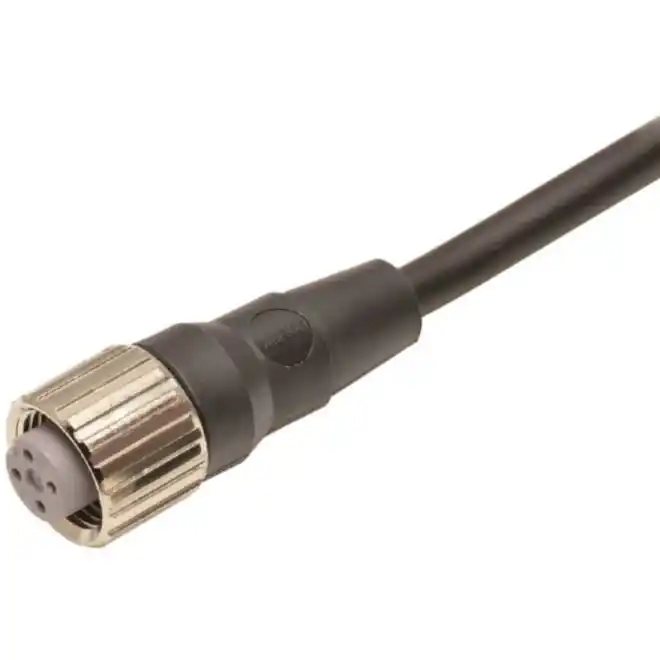

Omron XS2F-M12PVC5S5M Water Resistant Connector
SKU#:
587337
Omron XS2 water and environment-resistive FA connectors save wiring and maintenance effort. XS2F-M12PVC5S5M compact FA connectors satisfy IP67 requirements and ensure a 94V-0 fire retardant rating. A wide array of connectors makes a wiring system more modular, simplifies maintenance, and reduces downtime. Connectors with cables and connector assemblies are available. Three types of connector assembly: crimping, soldering, and screw-on.
| Brand | Omron Automation |
|---|---|
| Manufacturer Part Number | XS2F-M12PVC5S5M |
| Manufacturer Alternate Number | XS2FM12PVC5S5M |
| UPC | 4548583435438 |
| Cable Material | PVC |
| Size | M12 |
| Supply Voltage Range | 125VDC, 250VAC |
| Socket or Plug | Female Socket |
| Type | M12 Cordset with Connector on One End |
| Wire Size | 22AWG |
| Number of Pins/Wires | 5 |
| Connector Shape | Straight |
| Cable Length | 5m |
| Color | Black |
| IP Rating | IP67 |
| Rated Current | 4 A |
| Height (mm) | 5.8mm |
| Width (mm) | 5.8mm |
| Depth (Length) (mm) | 5000mm |
| Weight (lbs) | 0.50 |
| UOM | ea |
