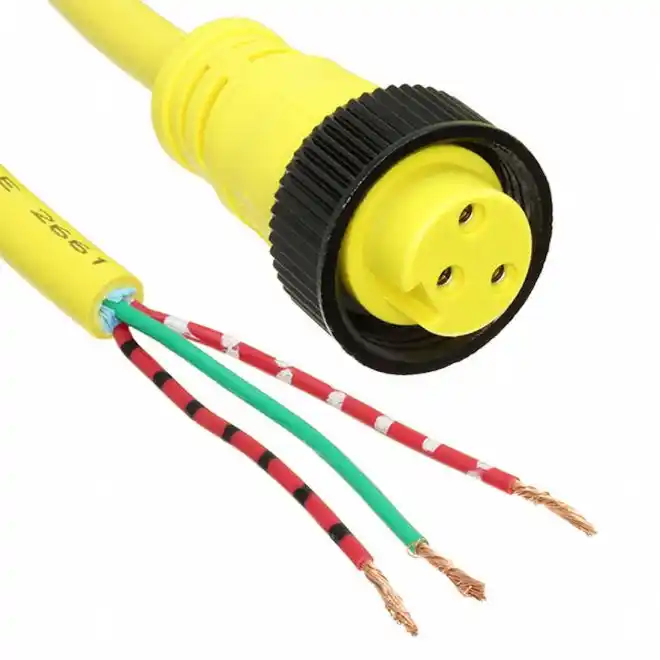

Omron Y96E-33SA12 Connector Cordset
SKU#:
4522
Omron Y96E AC MicroChange® cordsets. Quick-disconnect AC cordsets allow easy installation and replacement of AC sensors. Oil-resistant, PVC jacketed cable with internal metal sheath protects conductors against cuts and abrasions. Choose straight or right-angle connector cordsets. Y96E-33SA12 is UL recognized, CSA certified.
| Brand | Omron Automation |
|---|---|
| Manufacturer Part Number | Y96E-33SA12 |
| Manufacturer Alternate Number | Y96E33SA12 |
| Cable Material | PVC |
| Supply Voltage Range | 300VAC, 300VDC |
| Socket or Plug | Female Socket |
| Wire Size | 22AWG |
| Number of Pins/Wires | 3 |
| Connector Shape | Straight |
| Color | Yellow |
| IP Rating | IP67 |
| Rated Current | 3A |
| Height (mm) | 15mm |
| Width (mm) | 15mm |
| Depth (Length) (mm) | 3700mm |
| Weight (lbs) | 0.60 |
| UOM | ea |
