Square D ZCKL1H7 Limit switch body 1 NC + 1 NO
SKU#:
173954

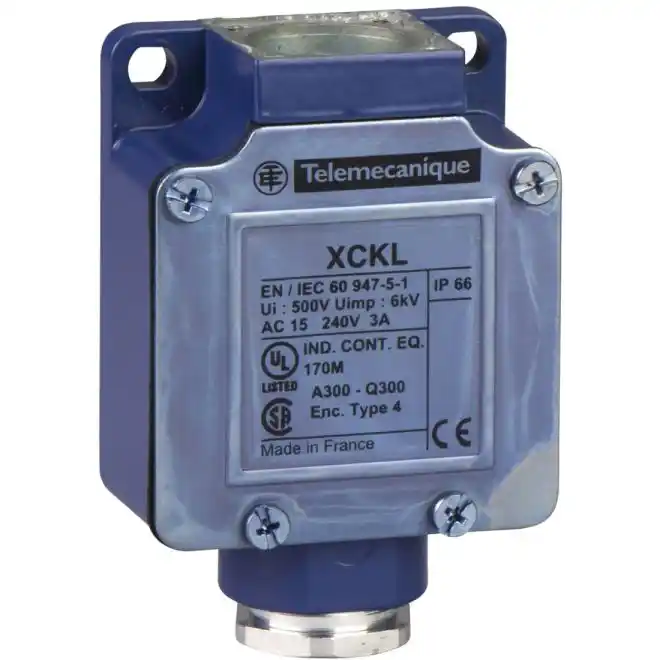

Schneider Electric ZCKL1H7 ZCK body/contact assembly with connector has a Zamak body. Telemecanique limit switch body has 1 x NO + 1 x NC snap action contacts and multiple 1/2" NPT cable entries. It can be matched with any head, levers or actuator from Square D XCKD, XCKP and XCKT ranges.
| Brand | Schneider Electric / Telemecanique / Square D |
|---|---|
| Manufacturer Part Number | ZCKL1H7 |
| Manufacturer Alternate Number | ZCKL1H7 |
| UPC | 3389110646146 |
| Terminal Type | Screw Terminals |
| Rated Current | 3 A 240 V, AC-15, A300, 0.27 A 250 V, DC-13, Q300 |
| Actuator Type | Snap Action |
| Switch Type | 1 NC + 1 NO |
| Conduit Size | 1 entry tapped for 1/2" NPT conduit |
| Electrical Operations Minimum | 5,000,000 |
| IP Rating | IP66 |
| Special Function | Fixed Body |
| Type | Limit switch body |
| Height (mm) | 72mm (2.83") |
| Width (mm) | 52mm |
| Depth (Length) (mm) | 30mm |
| Weight (lbs) | 0.46 |
| UOM | ea |
