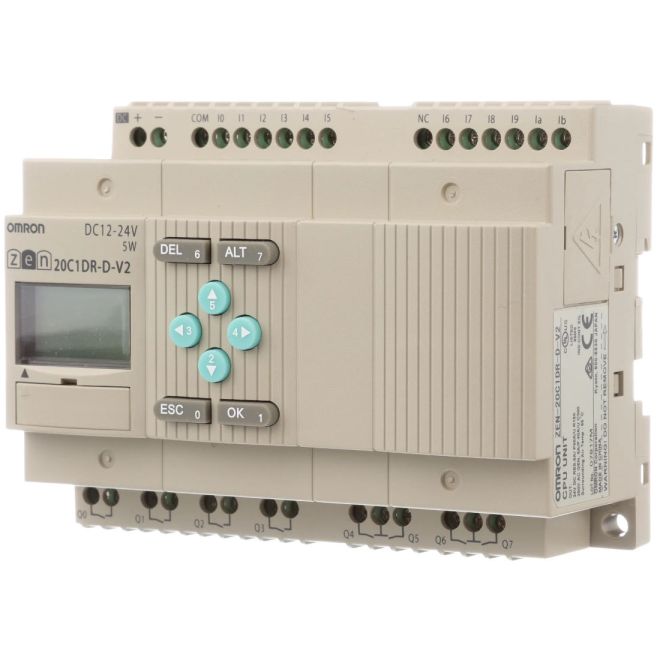

Omron ZEN-20C1DR-D-V2 12 Inputs 8 Outputs Relay
SKU#:
342738
Any time you have more than 4 discrete timers and relays, you can find an affordable substitute with Omron's ZEN multifunctional programmable relay. This is especially true if the job calls for more than 16 day/date start-and-stop combinations. Setup and testing of machines with ZEN-20C1DR-D-V2 is much simpler, compared to a panel full of discrete components. A built-in display verifies ladder logic program steps and changes can be made using front-panel buttons.
| Brand | Omron Automation |
|---|---|
| Manufacturer Part Number | ZEN-20C1DR-D-V2 |
| Manufacturer Alternate Number | ZEN20C1DRDV2 |
| UPC | 4547648391245 |
| Supply Voltage Range | 12VDC - 24VDC |
| Analog Inputs | 2, 0V - 10V |
| Max. Expansion | 44 |
| Mounting Type | DIN Rail |
| Display | LCD |
| Real-Time Clock, Calendar | Yes |
| IP Rating | IP20 |
| Number of Input Points | 12 |
| Number of Output Points | 8 |
| Input Type | 12VDC-24VDC |
| Output Type | Relays |
| Program Capacity | 96 Lines |
| Height (mm) | 90mm |
| Width (mm) | 123mm (4.83") |
| Depth (Length) (mm) | 56mm |
| Weight (lbs) | 0.77 |
| UOM | ea |
