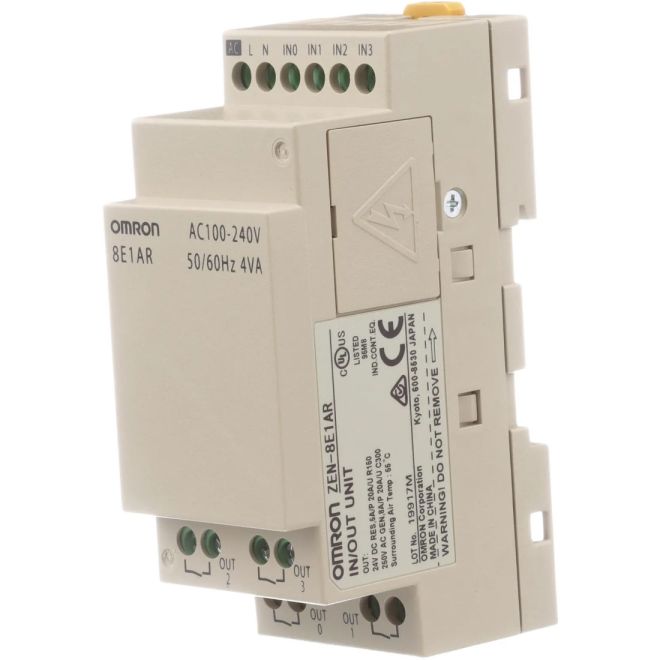

Omron ZEN-8E1AR 4 Inputs 4 Outputs Expansion I/O
SKU#:
347151
Any time you have more than 4 discrete timers and relays, you can find an affordable substitute with Omron's ZEN multifunctional programmable relay. This is especially true if the job calls for more than 16 day/date start-and-stop combinations. Setup and testing of machines with ZEN-8E1AR is much simpler, compared to a panel full of discrete components. A built-in display verifies ladder logic program steps and changes can be made using front-panel buttons.
| Brand | Omron Automation |
|---|---|
| Manufacturer Part Number | ZEN-8E1AR |
| Manufacturer Alternate Number | ZEN8E1AR |
| UPC | 4547648391085 |
| Analog Inputs | No |
| Max. Expansion | 3 |
| Mounting Type | DIN Rail |
| IP Rating | IP20 |
| Number of Input Points | 4 |
| Number of Output Points | 4 |
| Input Type | 100VAC-240VAC |
| Output Type | Relays |
| Height (mm) | 90mm |
| Width (mm) | 35mm |
| Depth (Length) (mm) | 54mm |
| Weight (lbs) | 0.26 |
| UOM | ea |
