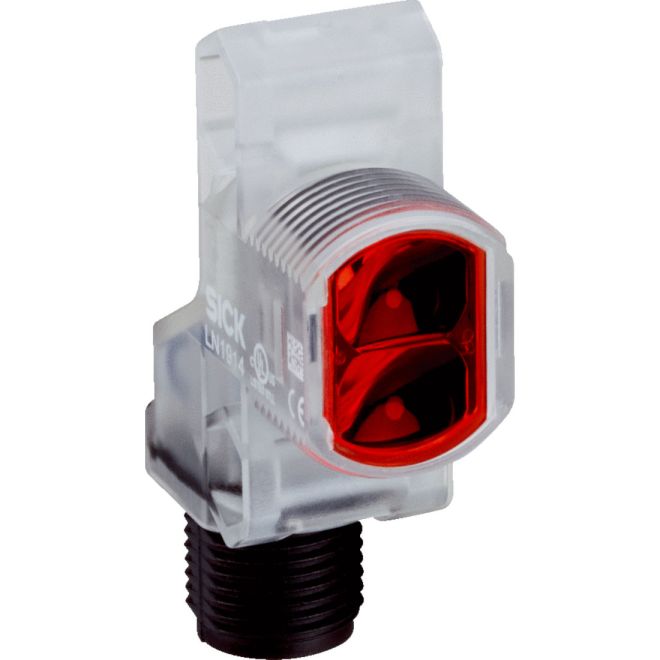

SICK ZLD18-BFZ3A8 1100625 Retro-Reflective Sensors
SKU#:
606369
SICK Z18 SimpleSense sensors are the ideal detection solution for standard applications at close range. With a wide range of housing options, mounting options, and sensor principles, the hybrid photoelectric sensors are suitable for all kinds of detection environments. The sensors are easy to mount and can also be integrated into existing plants and systems without any problems - including where space is at a premium - thanks to their miniature format. This combination of outstanding performance with maximum cost-effectiveness makes the Z18 SimpleSense sensors the ideal solution wherever reliable presence detection is required.
| Brand | SICK |
|---|---|
| Manufacturer Part Number | ZLD18-BFZ3A8 |
| Manufacturer Alternate Number | 1100625 |
| Size | M18 |
| Body Type | Hybrid |
| Type | Male Connector M8, 4-Pin |
| Operation | Dark Switching |
| Supply Voltage Range | 10VDC - 30VDC |
| Material | Plastic, ABS |
| Sensing Method | Retro-Reflective |
| Sensing Range | 0m - 5m |
| Output Type | PNP |
| Light Source | Red LED |
| Electrical Connection | Male Connector M8, 4-pin |
| IP Rating | IP67 |
| Height (mm) | 41.7mm |
| Width (mm) | 13.6mm |
| Depth (Length) (mm) | 31.7mm |
| Weight (lbs) | 0.02 |
| UOM | ea |
