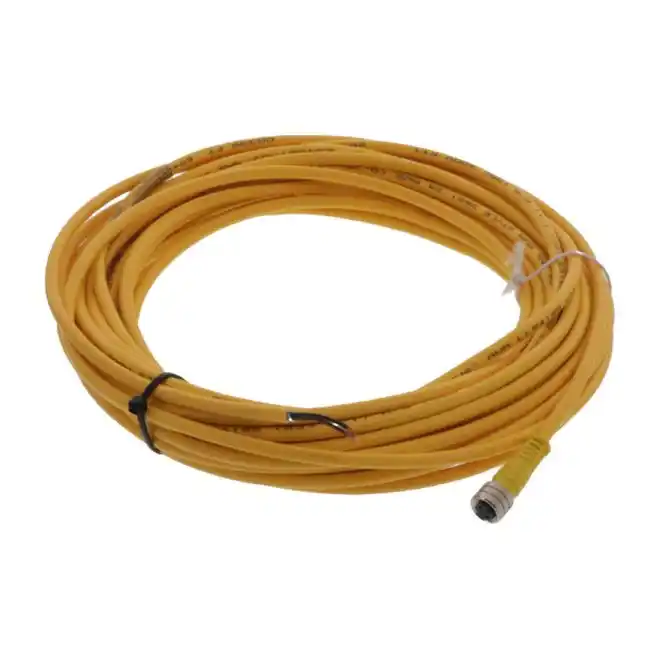

Molex 1200860144 M8 Single-Ended Cordset Female
SKU#:
146858
Molex Nano-Change (M8) industry standard connectors are rugged, space-saving, sealed connectors for miniature sensors and actuators in industrial control applications. Molex 1200860144 Brad 404000A10M020 Nano-Change connectors are designed to withstand harsh-industrial and weather environments. These connectors are used to interconnect miniature sensors and actuators found in industrial control applications. The small, compact M8 design also makes these connectors well suited for applications requiring a sealed connector in very tight spaces. Nano-Change cordsets, receptacles and pre-wired distribution boxes are available in 3, 4, and 5 pole IEC compliant configurations.
| Manufacturer Part Number | 1200860144 |
|---|---|
| Manufacturer Alternate Number | 120086-0144 |
| UPC | 78678832850 |
| Cable Material | PVC |
| Size | M8 |
| Supply Voltage Range | 60V AC / 75V DC |
| Socket or Plug | Female Socket |
| Type | Cordset |
| Wire Size | 24 AWG |
| Number of Pins/Wires | 4 |
| Connector Shape | Straight |
| Cable Length | 2m |
| Color | Yellow |
| IP Rating | IP67 |
| Rated Current | 3A |
| Weight (lbs) | 0.16 |
| UOM | ea |
