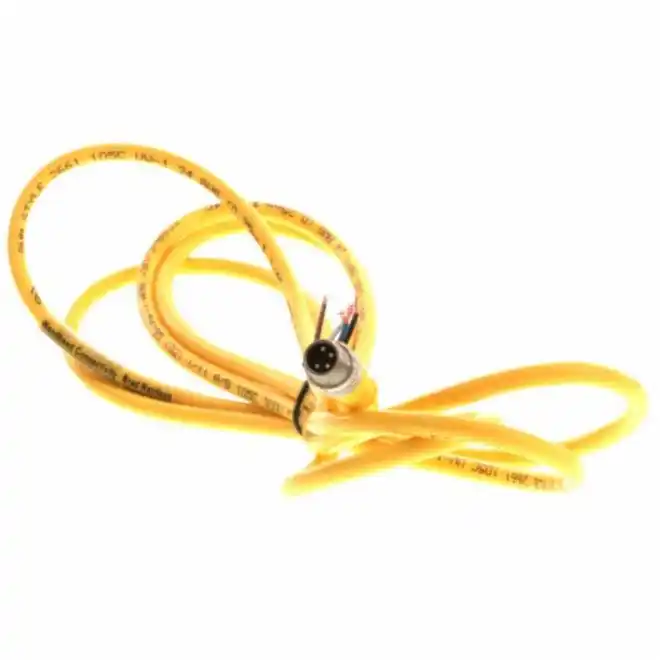

Molex 1200860183 M8 Single-Ended Cordset Male
SKU#:
146870
Molex Nano-Change (M8) industry standard connectors are rugged, space-saving, sealed connectors for miniature sensors and actuators in industrial control applications. Molex 1200860183 Brad 404006A10M020 Nano-Change connectors are designed to withstand harsh-industrial and weather environments. These connectors are used to interconnect miniature sensors and actuators found in industrial control applications. The small, compact M8 design also makes these connectors well suited for applications requiring a sealed connector in very tight spaces. Nano-Change cordsets, receptacles and pre-wired distribution boxes are available in 3, 4, and 5 pole IEC compliant configurations.
| Manufacturer Part Number | 1200860183 |
|---|---|
| Manufacturer Alternate Number | 120086-0183 |
| UPC | 78678832843 |
| Cable Material | PVC |
| Size | M8 |
| Supply Voltage Range | 60V AC / 75V DC |
| Socket or Plug | Male Plug |
| Type | Cordset |
| Wire Size | 24 AWG |
| Number of Pins/Wires | 4 |
| Connector Shape | Straight |
| Cable Length | 2m |
| Color | Yellow |
| IP Rating | IP67 |
| Rated Current | 3A |
| Weight (lbs) | 0.16 |
| UOM | ea |
