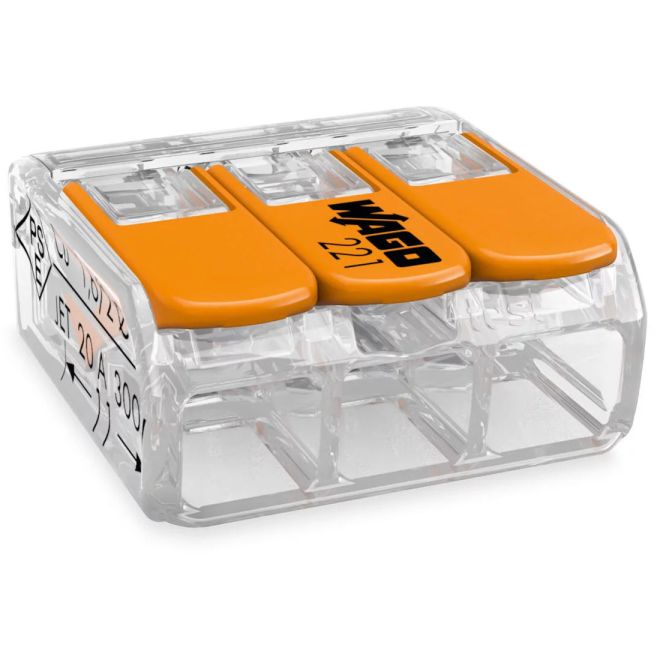

WAGO 221-413 COMPACT Splicing Connectors Levers
SKU#:
566883
From intercom system wiring, to electrical ovens to hazardous locations: Connecting different conductor types is quick and easy with WAGO's compact 221 Series 221-413/K194-4045/000-050 Splicing Connector. Your benefits include: Connect all conductor types without preparing them, Combine any conductor types and sizes, Easy-to-use operating lever for tool-free terminations, Perfect for distribution applications thanks to mounting carrier. WAGO 221-413/K194-4045/000-050 is comparable to WAGO 221-413/VE00-0050.
| Brand | WAGO |
|---|---|
| Manufacturer Part Number | 221-413/K194-4045/000-050 |
| Manufacturer Alternate Number | 2210413 |
| UPC | 4050821808442 |
| Electrical Connection | CAGE CLAMP® |
| Fine-Stranded Conductor Wire Range | 0.14mm2 - 4mm2 / 24 - 12 AWG |
| Total Number of Connection Points | 3 |
| Total Number of Potentials | 1 |
| Strip Length | 11mm / 0.43 inch |
| Type of Wiring | Side-Entry Wiring |
| Color | Transparent, Orange |
| Height (mm) | 8.3mm / 0.327 inch |
| Width (mm) | 18.7mm / 0.736 inch |
| Depth (Length) (mm) | 18.6mm / 0.732 inch |
| Weight (lbs) | 0.01 |
| UOM | ea |
