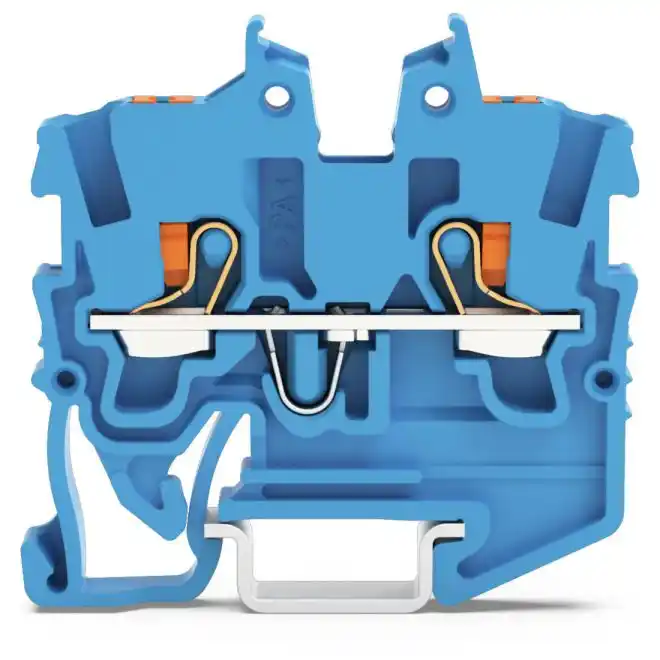

WAGO 2250-1204 Miniature Feedthrough Terminal Blue
SKU#:
609173
A compact design makes WAGO 2250-1204 Mini Rail-Mount Terminal Blocks ideal for work in tight spaces. Various mounting and actuation variants are also available for maximum flexibility, so you can choose your Mini terminal blocks based on use and convenience. Thanks to spring pressure connection technology, they are also suitable for vibration-proof connections and can be used in junction boxes of three-phase motors, for example.
| Brand | WAGO |
|---|---|
| Manufacturer Part Number | 2250-1204 |
| Manufacturer Alternate Number | 60426185 |
| UPC | 4055143965736 |
| Electrical Connection | Push-in CAGE CLAMP® |
| Fine-Stranded Conductor Wire Range | 0.14mm2-1.5mm2 / 24 - 16 AWG |
| Fine-Stranded Conductor with Ferrule Wire Range | 0.14mm2 - 0.75mm2 / 24 - 18 AWG |
| Total Number of Connection Points | 2 |
| Total Number of Potentials | 1 |
| Strip Length | 9mm - 11mm / 0.35 - 0.43 inches |
| Number of Levels | 1 |
| Number of Jumper Slots | 1 |
| Type of Wiring | Front-Entry Wiring |
| Mounting Type | DIN-15 Rail |
| Color | Blue |
| Height (mm) | 34.1mm (1.343") |
| Width (mm) | 3.5mm / 0.138 inch |
| Depth (Length) (mm) | 27.9mm / 1.098 inch |
| Weight (lbs) | 0.01 |
| UOM | ea |
