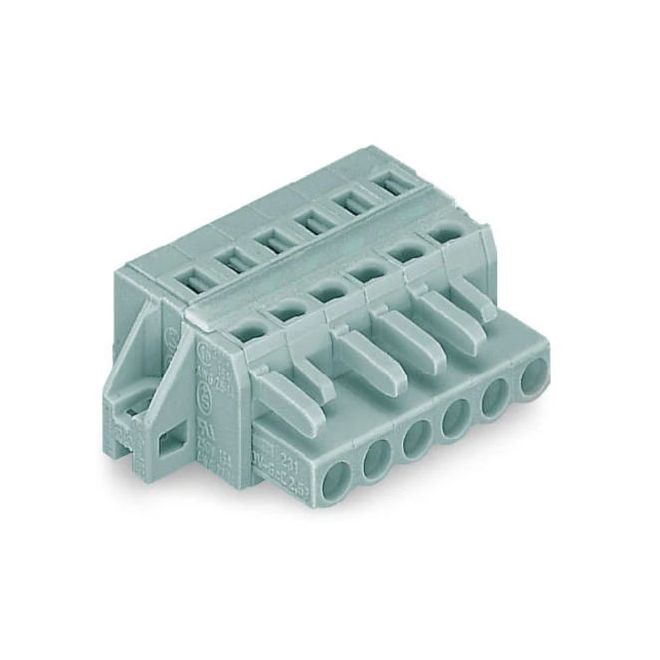

WAGO 231-110/027-000 MCS MIDI Classic Female Plugs
SKU#:
56322
WAGO MCS MULTI CONNECTION SYSTEM includes connectors without breaking capacity in accordance with DIN EN 61984. When used as intended, 231-110/027-000 connectors must not be connected/disconnected when live or under load. The circuit design should ensure header pins, which can be touched, are not live when unmated.
| Brand | WAGO |
|---|---|
| Manufacturer Part Number | 231-110/027-000 |
| Manufacturer Alternate Number | 51116851 |
| UPC | 4044918341059 |
| Electrical Connection | CAGE CLAMP® |
| Fine-Stranded Conductor Wire Range | 0.08mm2 - 2.5mm2 / 28 - 12 AWG |
| Total Number of Connection Points | 10 |
| Total Number of Potentials | 10 |
| Strip Length | 8mm - 9mm / 0.31 - 0.35 inch |
| Number of Levels | 1 |
| Mounting Type | Flange |
| Color | Gray |
| Height (mm) | 14.3mm / 0.563 inch |
| Width (mm) | 64.8mm / 2.551 inch |
| Depth (Length) (mm) | 26.45mm / 1.041 inch |
| Weight (lbs) | 0.04 |
| UOM | ea |
