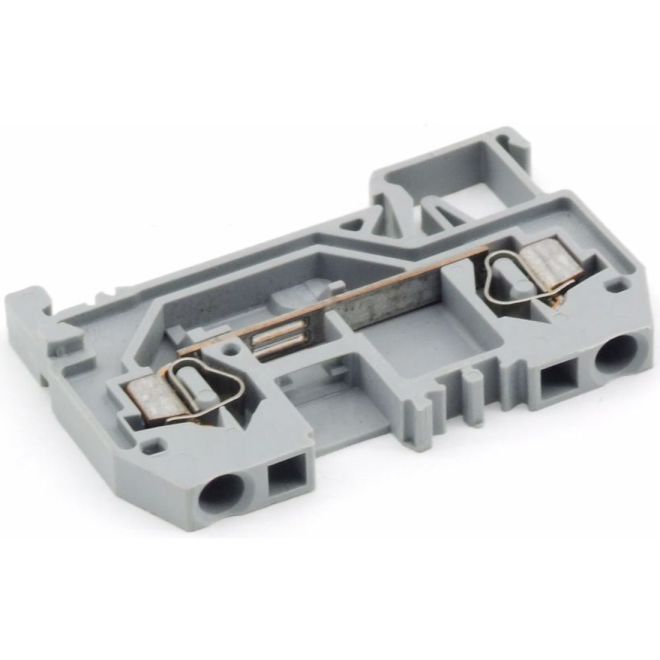

WAGO 280-901 Through Terminals 2.5mm2 Gray
SKU#:
35600
WAGO rail-mount terminal block program with proven CAGE CLAMP® Connection Technology has the right terminal block for any application: fuse, disconnect/test, diode and LED terminal blocks, pluggable terminal blocks - even rail-mount terminal blocks for wiring sensors and actuators. Advantages include: Multilevel terminal blocks: Double-deck or triple-deck terminal blocks save space, WAGO 280-901 CAGE CLAMP® connections: tried-and-tested billions of times, Multifaceted, individual commoning options via push-in type jumper bars, step-down jumpers, staggered jumpers, vertical jumpers, etc., Circuit identification via WMB markers, Easy testing via pluggable and modular test plug adapters, as well as test plugs. WAGO 280-901 is comparable to Automation Direct DN-Q12-A, Phoenix Contact 3031212, Weidmuller 1608510000, Allen Bradley 1492-L3 1492-R3, Wieland 56.703.0055.0, ABB 1SNK705010R0000.
| Brand | WAGO |
|---|---|
| Manufacturer Part Number | 280-901 |
| Manufacturer Alternate Number | 51121385 |
| UPC | 4044918391726 |
| Electrical Connection | CAGE CLAMP® |
| Fine-Stranded Conductor Wire Range | 0.08mm2 - 2.5mm2 / 28 - 12 AWG |
| Total Number of Connection Points | 2 |
| Total Number of Potentials | 1 |
| Strip Length | 8mm - 9mm / 0.31 - 0.35 inch |
| Number of Levels | 1 |
| Type of Wiring | Front-Entry Wiring |
| Mounting Type | DIN-35 Rail |
| Color | Gray |
| Height (mm) | 28mm / 1.102 inch |
| Width (mm) | 5mm / 0.197 inch |
| Depth (Length) (mm) | 53mm / 2.087 inch |
| Weight (lbs) | 0.01 |
| UOM | ea |
