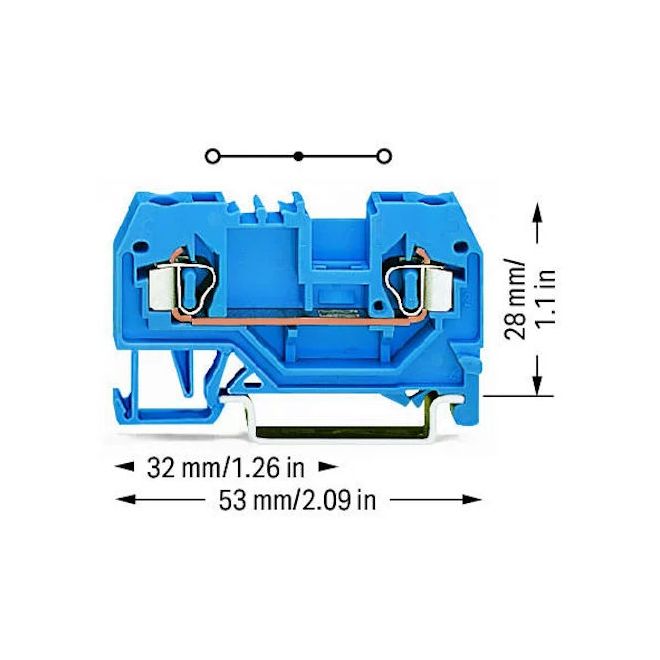

WAGO 280-904 Through Terminals 2.5mm² Blue

WAGO 280-904 spring clamp terminal blocks are suitable for solid aluminum conductors up to 4 mm²/12 AWG if WAGO "Alu-Plus" Contact Paste is used for termination. Using terminal blocks with CAGE CLAMP® Spring Pressure Connection Technology, aluminum conductors must first be cleaned with a blade and then immediately be inserted into the clamping units filled with "Alu-Plus" Contact Paste. It is also possible to apply WAGO "Alu-Plus" additionally on the whole surface of the aluminum conductor before termination. Using staggered jumpers reduces the maximum rated voltage to 275 V. WAGO 280-904 is comparable to Automation Direct DN-Q12B-A, Phoenix Contact 3031225, Weidmuller 1608520000, Allen Bradley 1492-L3-B 1492-R3-B, Wieland 56.703.0055.6, ABB 1SNK705020R0000.
