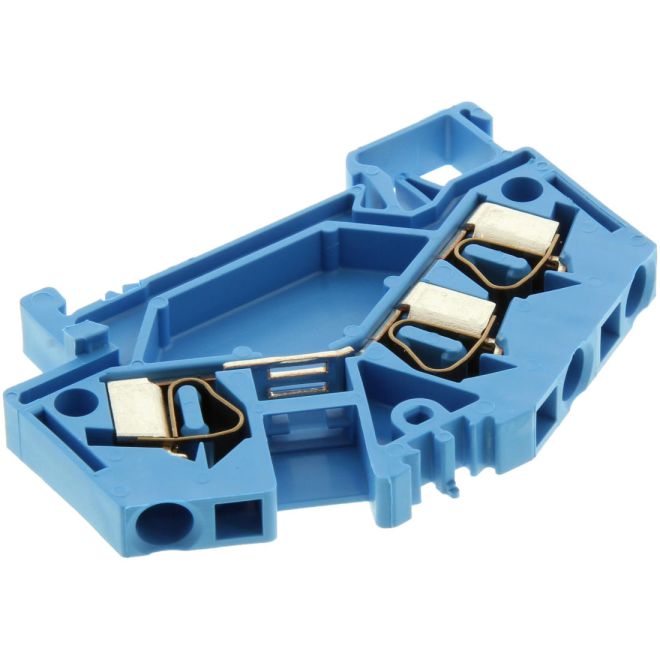

WAGO 281-651 3-Conductor Through Terminals Blue
SKU#:
28462
WAGO 281-651 spring clamp terminal blocks are suitable for solid aluminum conductors up to 4 mm2/12 AWG if WAGO "Alu-Plus" Contact Paste is used for termination. Using terminal blocks with CAGE CLAMP® Spring Pressure Connection Technology, aluminum conductors must first be cleaned with a blade and then immediately be inserted into the clamping units filled with "Alu-Plus" Contact Paste. It is also possible to apply WAGO "Alu-Plus" additionally on the whole surface of the aluminum conductor before termination. Using staggered jumpers reduces the maximum rated voltage to 275 V.
| Brand | WAGO |
|---|---|
| Manufacturer Part Number | 281-651 |
| Manufacturer Alternate Number | 51115560 |
| UPC | 4044918323901 |
| Electrical Connection | CAGE CLAMP® |
| Fine-Stranded Conductor Wire Range | 0.08mm2 - 4mm2 / 28 - 12 AWG |
| Total Number of Connection Points | 3 |
| Total Number of Potentials | 1 |
| Strip Length | 9mm - 10mm / 0.35 - 0.39 inch |
| Number of Levels | 1 |
| Type of Wiring | Front-Entry Wiring |
| Mounting Type | DIN-35 Rail |
| Color | Blue |
| Height (mm) | 37mm / 1.457 inch |
| Width (mm) | 6mm / 0.236 inch |
| Depth (Length) (mm) | 61.5mm / 2.421 inch |
| Weight (lbs) | 0.02 |
| UOM | ea |
