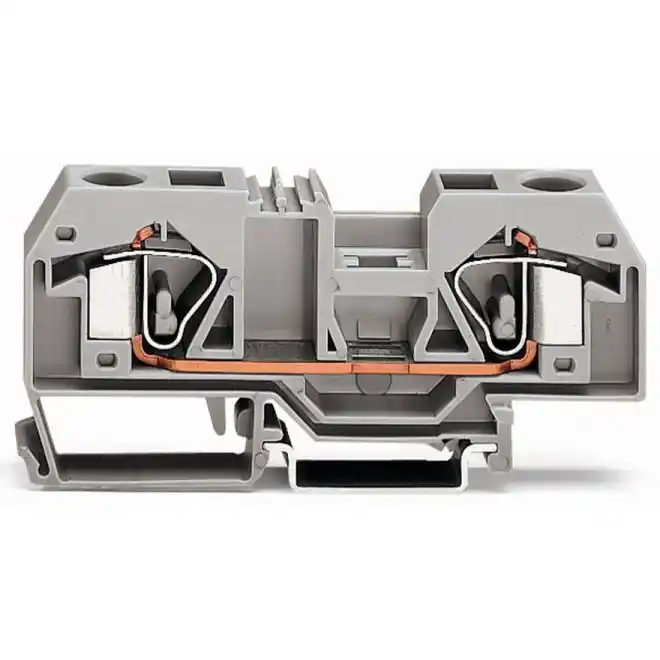

WAGO 283-901 Through Terminals 16mm2 Gray

SKU#:

59336

WAGO rail-mount terminal block program with proven CAGE CLAMP® Connection Technology has the right terminal block for any application: fuse, disconnect/test, diode and LED terminal blocks, pluggable terminal blocks - even rail-mount terminal blocks for wiring sensors and actuators. Advantages include: Multilevel terminal blocks: Double-deck or triple-deck terminal blocks save space, WAGO 283-901 CAGE CLAMP® connections: tried-and-tested billions of times, Multifaceted, individual commoning options via push-in type jumper bars, step-down jumpers, staggered jumpers, vertical jumpers, etc., Circuit identification via WMB markers, Easy testing via pluggable and modular test plug adapters, as well as test plugs.
Specifications
Brand WAGO
Manufacturer Part Number 283-901
Manufacturer Alternate Number 51113682
UPC 4044918297615
Electrical Connection CAGE CLAMP®
Fine-Stranded Conductor Wire Range 0.2mm2 - 16mm2 / 24 - 6 AWG
Total Number of Connection Points 2
Total Number of Potentials 1
Strip Length 16mm - 17mm / 0.63 - 0.67 inch
Number of Levels 1
Type of Wiring Front-Entry Wiring
Mounting Type DIN-35 Rail
Color Gray
Height (mm) 37.5mm / 1.476 inch
Width (mm) 12mm / 0.472 inch
Depth (Length) (mm) 94.5mm / 3.72 inch
Weight (lbs) 0.08
UOM ea
