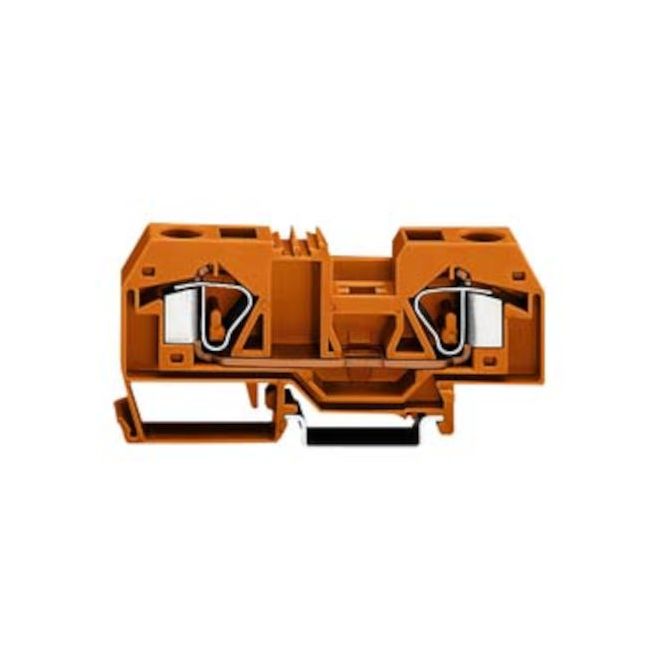

WAGO 283-902 Through Terminals 16mm2 Orange
SKU#:
59337
WAGO 283-902 spring clamp terminal blocks are suitable for solid aluminum conductors up to 4 mm2/12 AWG if WAGO "Alu-Plus" Contact Paste is used for termination. Using terminal blocks with CAGE CLAMP® Spring Pressure Connection Technology, aluminum conductors must first be cleaned with a blade and then immediately be inserted into the clamping units filled with "Alu-Plus" Contact Paste. It is also possible to apply WAGO "Alu-Plus" additionally on the whole surface of the aluminum conductor before termination. Using staggered jumpers reduces the maximum rated voltage to 275 V.
| Brand | WAGO |
|---|---|
| Manufacturer Part Number | 283-902 |
| Manufacturer Alternate Number | 51113684 |
| UPC | 4044918297776 |
| Electrical Connection | CAGE CLAMP® |
| Fine-Stranded Conductor Wire Range | 0.2mm2 - 16mm2 / 24 - 6 AWG |
| Total Number of Connection Points | 2 |
| Total Number of Potentials | 1 |
| Strip Length | 16mm - 17mm / 0.63 - 0.67 inch |
| Number of Levels | 1 |
| Type of Wiring | Front-Entry Wiring |
| Mounting Type | DIN-35 Rail |
| Color | Orange |
| Height (mm) | 37.5mm / 1.476 inch |
| Width (mm) | 12mm / 0.472 inch |
| Depth (Length) (mm) | 94.5mm / 3.72 inch |
| Weight (lbs) | 0.08 |
| UOM | ea |
