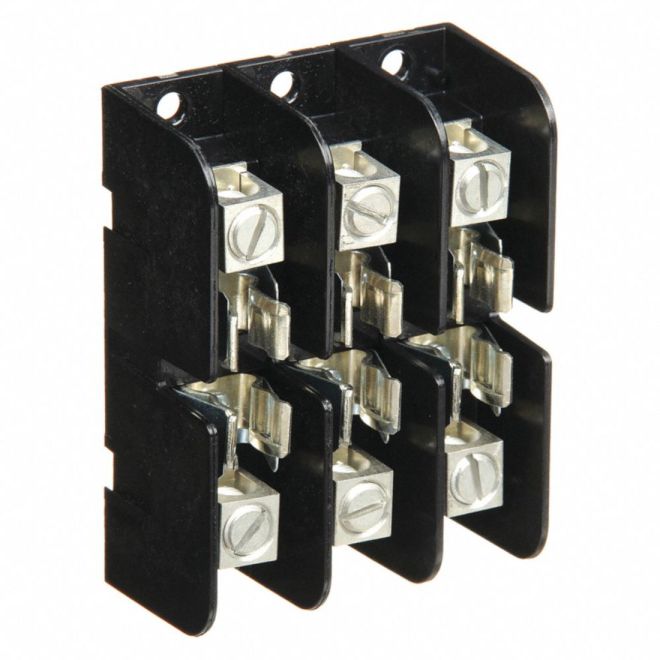

Mersen 30308T Ferraz Class T 300V Fuse Block
SKU#:
106955
Mersen Class T fuse blocks accommodate Class T fuses up to 600A. Insulators are either durable, glass-filled polycarbonate (GFPC) or phenolic with verified dielectric strength in excess of 2500V. Mersen is the only manufacturer to offer Class T 30308T blocks with copper connectors. Ferraz Shawmut 30308T is comparable to Littelfuse LT30030-3CR, Marathon SP RT30A3B, Eaton Cooper Bussmann T30030-3CR, Marathon SP T30A3B.
| Brand | Mersen / Ferraz Shawmut / Gould |
|---|---|
| Manufacturer Part Number | 30308T |
| Manufacturer Alternate Number | R216468 |
| UPC | 782001675165 |
| Rated Voltage AC | 300VAC |
| Rated Voltage DC | 300VDC |
| Rated Current | 30A |
| RoHS Compliant | Yes |
| Fuse Class | T |
| Mounting Type | Direct Screw Mount |
| Connection/Terminal Material | Tin-Plate |
| Terminal Type | Aluminum Box with Reinforced Clip |
| Body/Insulating Material | GFPC |
| Short Circuit Current Rating (SCCR) | 200A |
| Fuse Installation Method | Clip-in |
| Max Fuse Rating | 30A |
| Number of Poles | 3 |
| Type | Open Style |
| Height (mm) | 38mm |
| Width (mm) | 47mm |
| Depth (Length) (mm) | 86mm |
| Weight (lbs) | 0.43 |
| UOM | ea |
