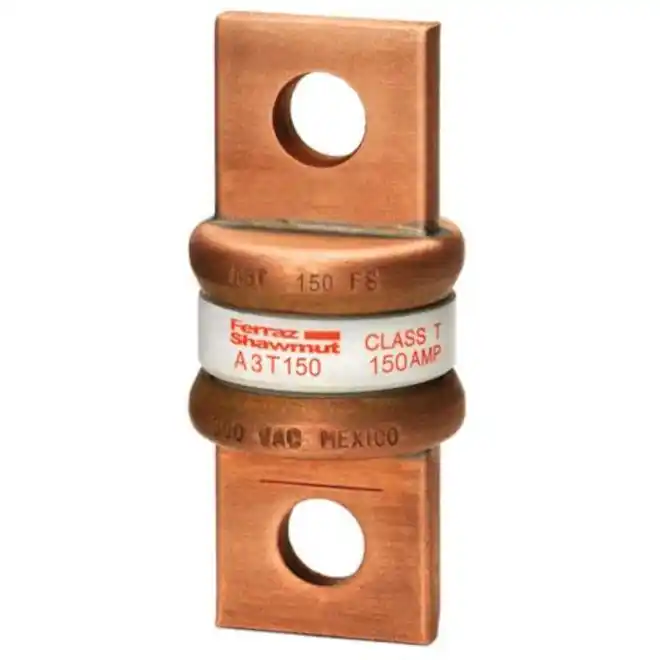

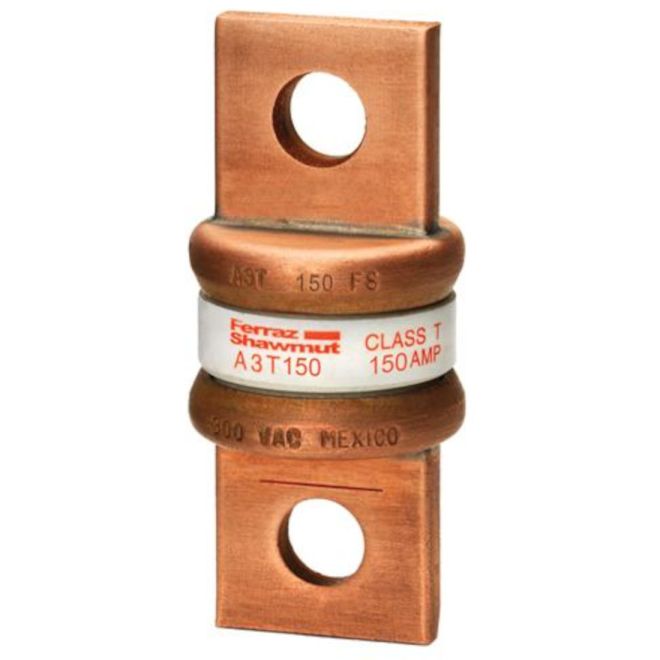

Mersen A3T150 Ferraz Fast Acting/Class T Fuse
SKU#:
109569
Mersen fast-acting A3T and A6T Class T fuses combine two highly desirable features - high current limitation and a small physical size. Their unique dimensions prevent the substitution of other fuses with lower voltage ratings or current-limiting capability. A3T150 fuses have glass melamine bodies for superior dimensional stability and catalog numbers stamped into the blades for permanent identification. Ferraz Shawmut A3T150 is comparable to Littelfuse JLLN-150, JLLN-150.
| Brand | Mersen / Ferraz Shawmut / Gould |
|---|---|
| Manufacturer Part Number | A3T150 |
| Manufacturer Alternate Number | D219906 |
| UPC | 782001890216 |
| Rated Voltage AC | 300VAC |
| Rated Voltage DC | 160VDC |
| Rated Current | 150A |
| RoHS Compliant | Yes |
| Fuse Class | T |
| Speed/Characteristic | Fast-Acting |
| Mounting Type | Bolted |
| Short Circuit Current Rating (SCCR) | 200kA |
| Connection/Terminal Material | Copper |
| Terminal Type | Blade |
| Body/Insulating Material | GMG |
| Type | Fast Acting |
| Height (mm) | 27mm (1.06") |
| Width (mm) | 27mm |
| Depth (Length) (mm) | 62mm |
| Weight (lbs) | 0.18 |
| UOM | ea |
