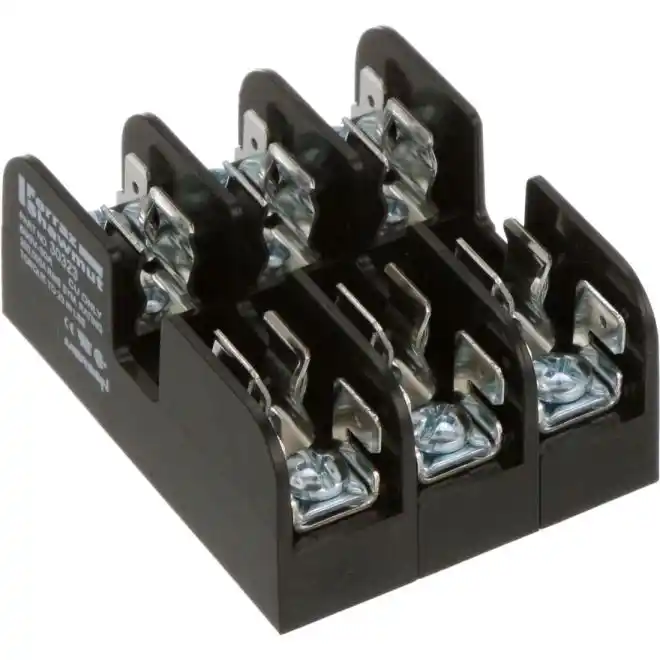

Mersen 30323 Ferraz Midget 600V Fuse Block B201642
SKU#:
27884
Mersen midget fuse blocks accommodate all 30 ampere 1-1/2" x 13/32" midget fuses. Class CC fuse blocks accommodate all 30 ampere Class CC fuses. A choice of box, screw, or pressure-plate connectors fit a wide range of stranded or solid copper wire. Insulators are glassfilled polycarbonate (GFPC) with verified dielectric strength in excess of 2500V. 30323 fuse blocks feature a unique adder block which can be snapped onto 1-pole, 2-pole or 3-pole blocks to form multi-pole segmented blocks of as many poles as desired. All fuse clips are made of high conductivity tin-plated copper alloy. Ferraz Shawmut 30323 is comparable to Littelfuse L60030M-3PQ.
| Brand | Mersen / Ferraz Shawmut / Gould |
|---|---|
| Manufacturer Part Number | 30323 |
| Manufacturer Alternate Number | B201642 |
| UPC | 782001758264 |
| Rated Voltage AC | 600VAC |
| Rated Voltage DC | 600VDC |
| Rated Current | 30A |
| RoHS Compliant | Yes |
| Fuse Class | Midget |
| Mounting Type | Screw Mount / DIN Rail |
| Connection/Terminal Material | Tin-Plate |
| Terminal Type | Copper Pressure Plate with Reinforced Clip |
| Body/Insulating Material | GFPC |
| Short Circuit Current Rating (SCCR) | 10A - 100A |
| Fuse Installation Method | Clip-in |
| Max Fuse Rating | 30A |
| Number of Poles | 3 |
| Type | Open Style |
| Height (mm) | 33mm (1.3") |
| Width (mm) | 60mm |
| Depth (Length) (mm) | 77mm |
| Weight (lbs) | 0.35 |
| UOM | ea |
