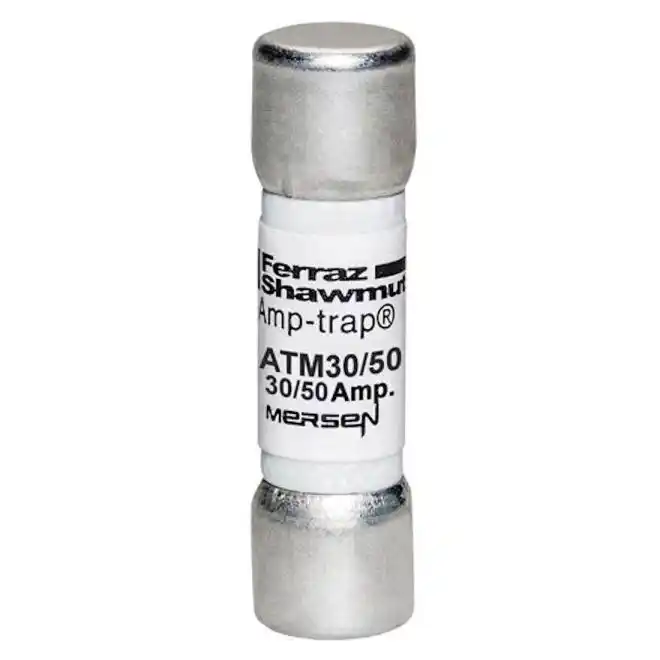

Mersen ATM30/50 Ferraz Fast Acting Midget Fuse
SKU#:
110313
Mersen Amp-Trap® midget fast-acting ATM fuses are rated 600 volts AC and DC, with a 100kA interrupting rating. These ratings give the ATM a wide range of applications not covered by other midget fuses. In addition, ratings of 30/35, 30/40 and 30/50 amperes are offered for specific applications such as capacitor protection. ATM30/50 fuses must still be considered 30A fuses because of their dimensions, but are able to withstand much higher inrush currents and tougher duty cycles. (Not for Branch Circuit Protection). Ferraz Shawmut ATM30/50 is comparable to Eaton Cooper Bussmann KTK-50.
| Brand | Mersen / Ferraz Shawmut / Gould |
|---|---|
| Manufacturer Part Number | ATM30/50 |
| Manufacturer Alternate Number | A215234 |
| UPC | 782001900984 |
| Rated Voltage AC | 600VAC |
| Rated Voltage DC | 600VDC |
| Rated Current | 30A, 50A |
| RoHS Compliant | Yes |
| Fuse Class | Midget |
| Speed/Characteristic | Fast-Acting |
| Mounting Type | Clip |
| Short Circuit Current Rating (SCCR) | 100kA |
| Connection/Terminal Material | Tin-Plated Copper |
| Terminal Type | Ferrule |
| Body/Insulating Material | GMG |
| Type | Fast Acting Midget |
| Height (mm) | 11mm (0.43") |
| Width (mm) | 11mm |
| Depth (Length) (mm) | 39mm |
| Weight (lbs) | 0.01 |
| UOM | ea |
