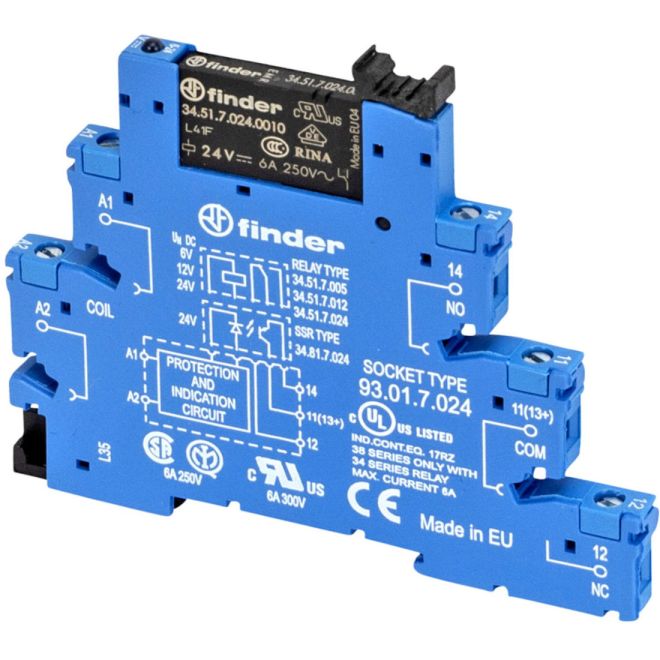

finder 38.51.7.024.0050 Relay Interface Module
SKU#:
211794
Finder 38 series screw terminal interface modules come pre-assembled with either solid state or electromechanical relays (SSR or EMR) saving you valuable time. Instant ejection of relay by plastic retaining clip. Integral coil indication and protection circuit. Finder 38 series relay interface module includes either 34 series ultra-slim PCB relay or 41 series low profile PCB relay and 93 series sockets with AC or DC coil. Applications include interfacing in general, widely used in automation with PLC and in applications where space saving is important, ATEX applications: LPG deposits, underground garages, gas stations. Finder 38.51.7.024.0050 is comparable to Relpol Altech PIR6W-1P-24VDC.
| Brand | finder |
|---|---|
| Manufacturer Part Number | 38.51.7.024.0050 |
| UPC | 8012823122991 |
| Coil Voltage | 24VDC |
| Contact Arrangement | SPDT (1 Form C) |
| Mounting Type | DIN Rail |
| Max. Switching Voltage | 400 VAC |
| Max. Switching Current | 10 A |
| Rated Current | 6A |
| Max. Switching Power(Resistive) | 1,500VA |
| Max. Switching Power (Inductive) | 300VA |
| Minimum Load | 500mW |
| Operating Temperature | -40°C - +85°C |
| RoHS Compliant | Yes |
| Duty Cycles | 1,000,000 |
| Height (mm) | 87.9mm |
| Width (mm) | 6.2mm |
| Depth (Length) (mm) | 75.6mm |
| Weight (lbs) | 0.07 |
| UOM | ea |
