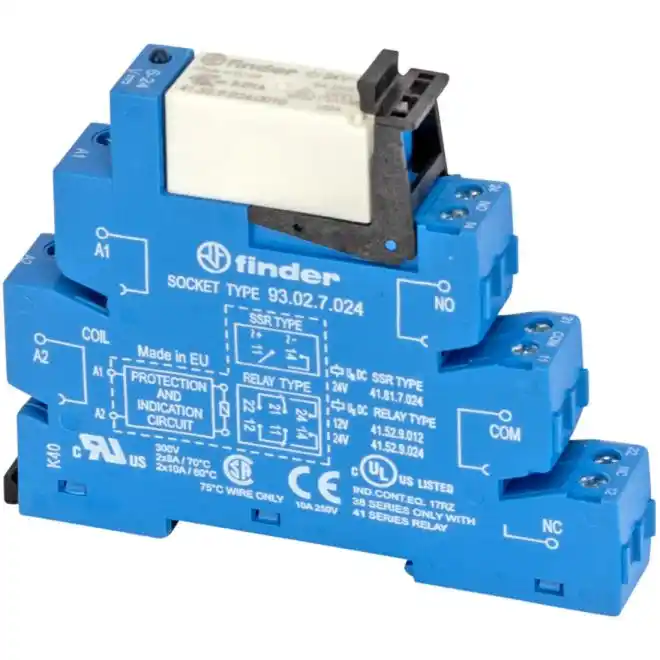

finder 38.52.7.024.0050 Relay Interface Module
SKU#:
569098
Finder 38.52.7.024.0050 is an 8A 2 pole (2P) electromechanical relay (EMR) interface module with sensitive 24V DC coil. Instant ejection of relay by plastic retaining clip. Integral coil indication and protection circuit. Finder 38.52.7.024.0050 35mm rail (EN 60715) mount interface module has 2 CO (SPDT - Single Pole Double Throw) cadmium-free standard AgNi (Silver Nickel) contact with screwless terminals. Applications include interfacing in general, widely used in automation with PLC and in applications where space saving is important, ATEX applications: LPG deposits, underground garages, gas stations.
| Brand | finder |
|---|---|
| Manufacturer Part Number | 38.52.7.024.0050 |
| UPC | 8012823310138 |
| Coil Voltage | 24VDC |
| Contact Arrangement | DPDT (2 Form C) |
| Terminal Type | Screw Terminal |
| Mounting Type | DIN Rail |
| Max. Switching Voltage | 400 VAC |
| Max. Switching Current | 15 A |
| Rated Current | 8A |
| Max. Switching Power(Resistive) | 2,000VA |
| Max. Switching Power (Inductive) | 400VA |
| Minimum Load | 300mW |
| Operating Temperature | -40°C - +70°C |
| RoHS Compliant | Yes |
| Duty Cycles | 1,000,000 |
| Height (mm) | 87.9mm |
| Width (mm) | 14mm |
| Depth (Length) (mm) | 77.1mm |
| Weight (lbs) | 0.14 |
| UOM | ea |
