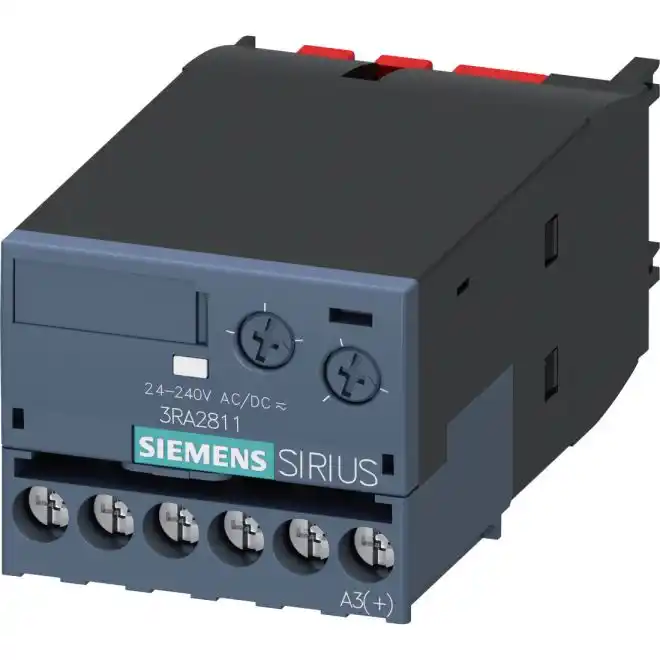

SIEMENS 3RA2811-1CW10 Electronic Timing Relays
SKU#:
480590
SIEMENS 3RA2811-1CW10 electronic timing relay ON delay with semiconductor output 24-240 V AC/DC time range 0.05 to 100 s can be snapped on at the front for contactors 3RT2 S00/S0 and auxiliary contactor 3RH2 S00 screw terminal varistor for attenuation of the contactor coils integrated.
| Brand | SIEMENS |
|---|---|
| Manufacturer Part Number | 3RA2811-1CW10 |
| Manufacturer Alternate Number | 3RA28111CW10 |
| UPC | 040892574661 |
| Rated Voltage | 24VAC-240VAC, 24VDC-240VDC |
| Size | Frame S00, Frame S0 |
| Electrical Connection | Screw Terminals |
| Operating Temperature | -25°C - +60°C |
| Duty Cycles | 10,000,000 |
| IP Rating | IP20 |
| Height (mm) | 38mm |
| Width (mm) | 45mm |
| Depth (Length) (mm) | 74mm |
| Weight (lbs) | 0.17 |
| UOM | ea |
