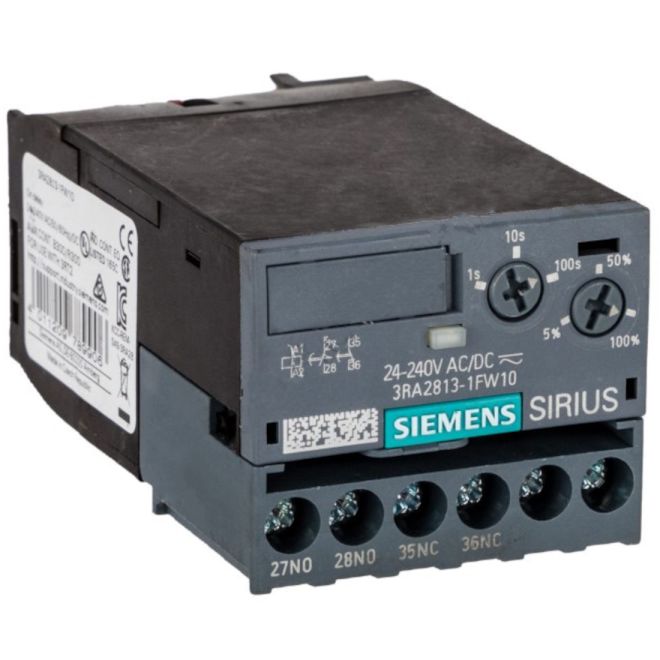

SIEMENS 3RA2813-1FW10 Solid-State Time-Delay ON
SKU#:
480595
SIEMENS 3RA2813-1FW10 solid-state time-delayed auxiliary switch ON delay Relay 1 NC + 1 NO 24 - 240 V AC/DC time range 0.05 - 100 s can be snapped on at the front for 3RT2 S00-S3 contactors and 3RH2 S00 contactor relays screw terminal varistor for attenuation of the contactor coils integrated. SIEMENS 3RA28131FW10 is comparable to Schneider Electric Square D Telemecanique LADT4, LA4DT0U, and LA4DT2U.
| Brand | SIEMENS |
|---|---|
| Manufacturer Part Number | 3RA2813-1FW10 |
| Manufacturer Alternate Number | 3RA28131FW10 |
| UPC | 040892574951 |
| Rated Voltage | 24VAC-240VAC, 24VDC-240VDC |
| Contact Arrangement | 1 N/C + 1 N/O |
| Size | Frame S00, Frame S0, Frame S2, Frame S3 |
| Electrical Connection | Screw Terminals |
| Operating Temperature | -25°C - +60°C |
| Duty Cycles | 10,000,000 |
| IP Rating | IP20 |
| Height (mm) | 38mm |
| Width (mm) | 45mm |
| Depth (Length) (mm) | 74mm |
| Weight (lbs) | 0.09 |
| UOM | ea |
